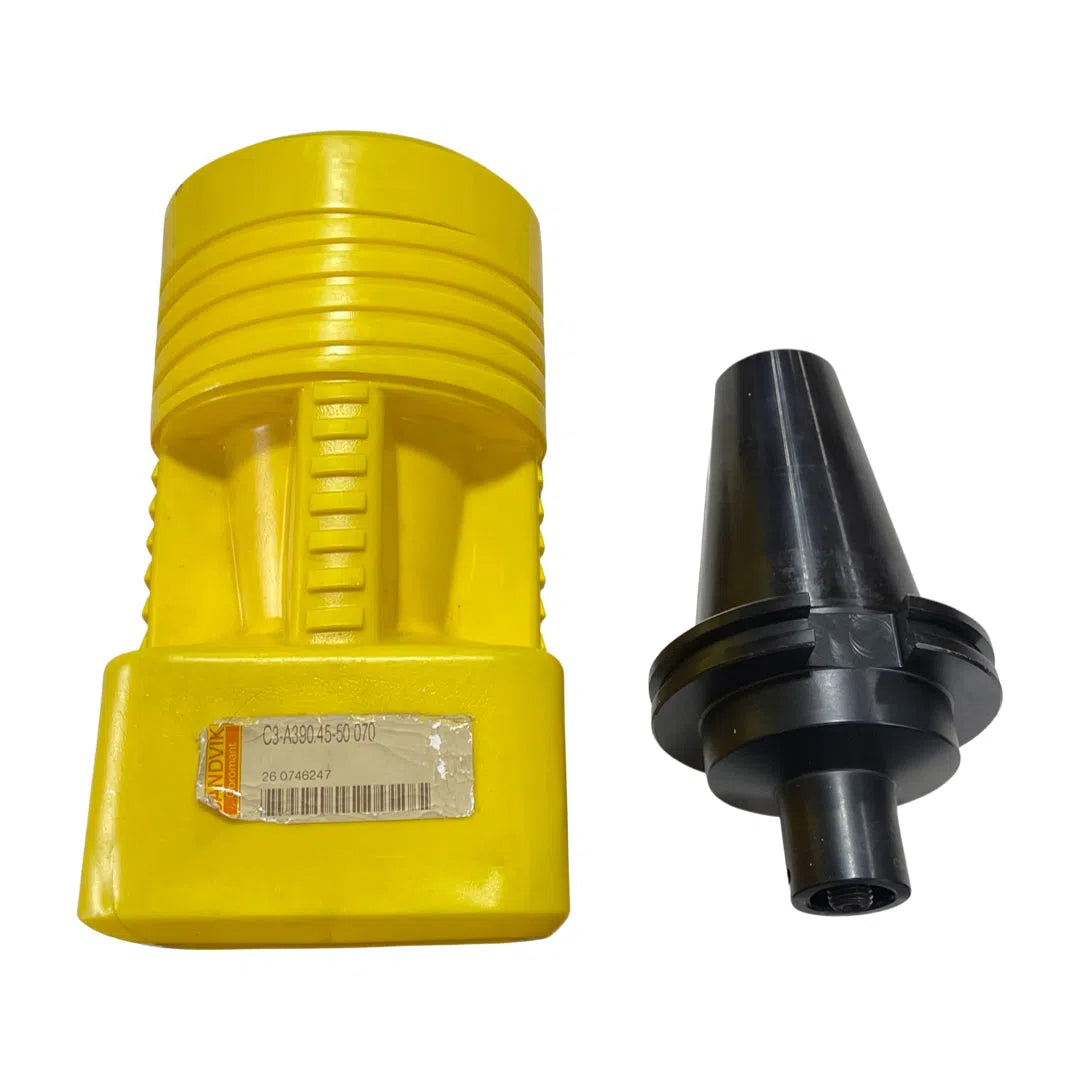

Sandvik BIG-PLUS CAT-V to Coromant Capto® adaptor C3-A390.545-50 070

Sandvik BIG-PLUS CAT-V to Coromant Capto® adaptor C3-A390.545-50 070

$112.11 USD
$0.00 USD $112.11 USD
Sale Sold out
Shipping calculated at checkout.
Free Shipping: Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our Shipping Policy for more details.

Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.

No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.

Low stock: 1 left

C3-A390.545-50 070

BIG-PLUS CAT-V to Coromant Capto® adaptor



Adaptive interface machine direction(ADINTMS)
BIG+/CAT-V -AD/B central/flange coolant - CAT-V50
Adaptive interface workpiece direction(ADINTWS)
Coromant Capto (bolt clamping) -size C3
Damping property(DPC)
false
Coolant entry style code(CNSC)
7: decentral over flange and axial
Coolant exit style code(CXSC)
1: axial concentric exit
Coolant pressure(CP)
1,160.3 lbf/in2
Data chip provision(DCP)
false
Connection diameter(DCON)
1.2598 inch
Functional diameter(DFC)
0.8661 | 2.75 inch
Connection retention knob thread size(CRKS)
1"-8
Kappa (z-axis rot)(KAP)
0 deg
Functional length(LF)
2.7559 inch
Body diameter(BD1)
1.2598 inch
Body diameter(BD2)
1.2598 inch
Body diameter(BD3)
2.752 inch
Body diameter(BD4)
3.874 inch
Body length(LB1)
1.1811 inch
Body length(LB2)
1.378 inch
Body length(LB3)
2.0079 inch
Body length(LB4)
2.7559 inch
