Product Description

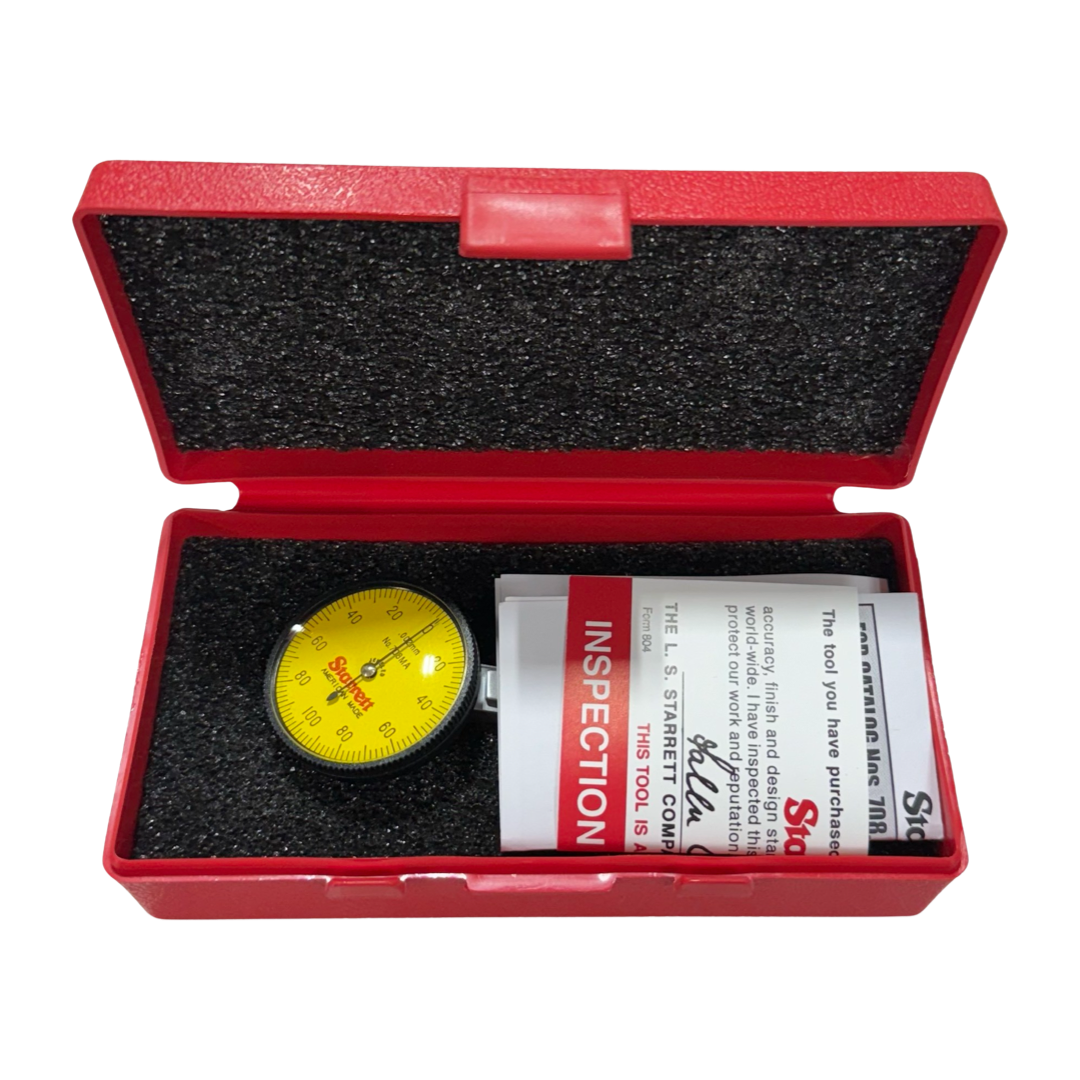

708MAZ Starrett Dial Test Indicator with Dovetails Mounts: 0.2mm

The Starrett 708MAZ Dial Test Indicator with Dovetail Mounts has the following specifications:

• Range: 0.2mm
• Graduations: .002mm
• Dial Reading: 0-100-0
• Contact Point Ball Diameter: .078″/2mm
• Contact Point Length: 5/8″(16mm)
• Dial Face Color: Yellow
• Attachments Included: No
• Standard Letter of Certification: No
• EDP: 65864

These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts.

Features:

• Made in the USA
• These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts
• Three dovetail positioning mounts work with existing test indicator accessories
• Precision gear-driven design with smooth, jeweled movement
• Contact point reverses automatically, always maintaining clockwise hand rotation
• Contacts are frictionally adjustable and replaceable
• Revolution count hand for easy reading
• Meet or exceed ISO accuracy specification
• Inch reading indicators are available with easy-to-read, shaded white, red, or black dials – millimeter reading indicators with yellow dials
• Angled head for better reading position
• Narrow body for inreach ability
• Satin chrome finish for durability
• Large 1-3/8″ (35mm) dial diameter
• Include long carbide contacts 13/16″ (20mm)
