APT 1-1/16" Tri-Lead Indexable Boring Bar, 4" Overall, USA Made

APT 1-1/16" Tri-Lead Indexable Boring Bar, 4" Overall, USA Made

$42.99 USD
$0.00 USD $42.99 USD
Sale Sold out
Shipping calculated at checkout.
Free Shipping: Available on all orders over $25 in value, shipping to the lower 48 states. Refer to our Shipping Policy for more details.

Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.

No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $25.

Low stock: 1 left

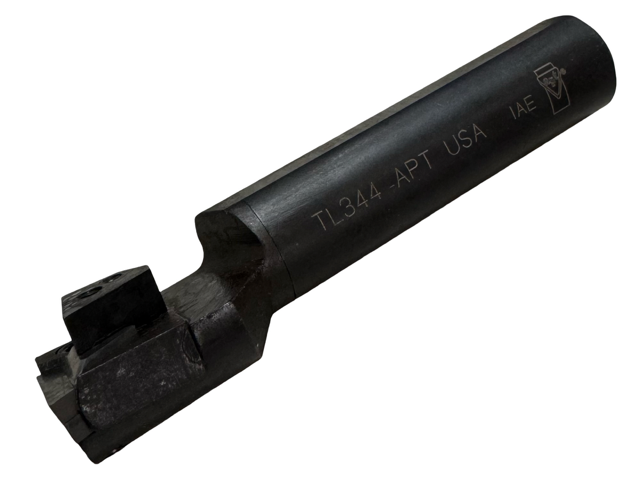

APT 1-1/16" Tri-Lead Indexable Boring Bar, 4" Overall, USA Made

main image

PRODUCT DESCRIPTION

FEATURES:

  • Inserts can be indexed and replaced without loss of hole size or depth.
  • Made of tempered alloy steel for rigidity.
  • Cartridges are hardened and ground to precision accuracy.
  • Uses standard 3/8" IC (TPG 320 Series) triangle inserts.
  • 3 different cartridges – 3 different lead angles – all interchangeable. Supplied with 0° no lead, clamp, chipbreaker, and shim. (5° positive and 5° negative lead also available.)
  • If pocket becomes damaged during use, simply replace the cartridge.

Inserts sold separately.



1.1/16X4 APT TRI-LEAD INDEX BORING BAR 3/4IN. SHANK

Item Specifications

  • Tri-Lead

  • 11/16"

  • 11/16"

  • 0°, -5°, +5°

  • 1-1/16"

  • 4"

  • 1-069-CBT12

  • 1-069-CTL

  • 1-069-CS832-58

  • 1-069-SM41

  • 1-069-CF440-14

  • 3/4"

  • Steel

  • TPG 320
