Michigan Wholesale Tool Supply

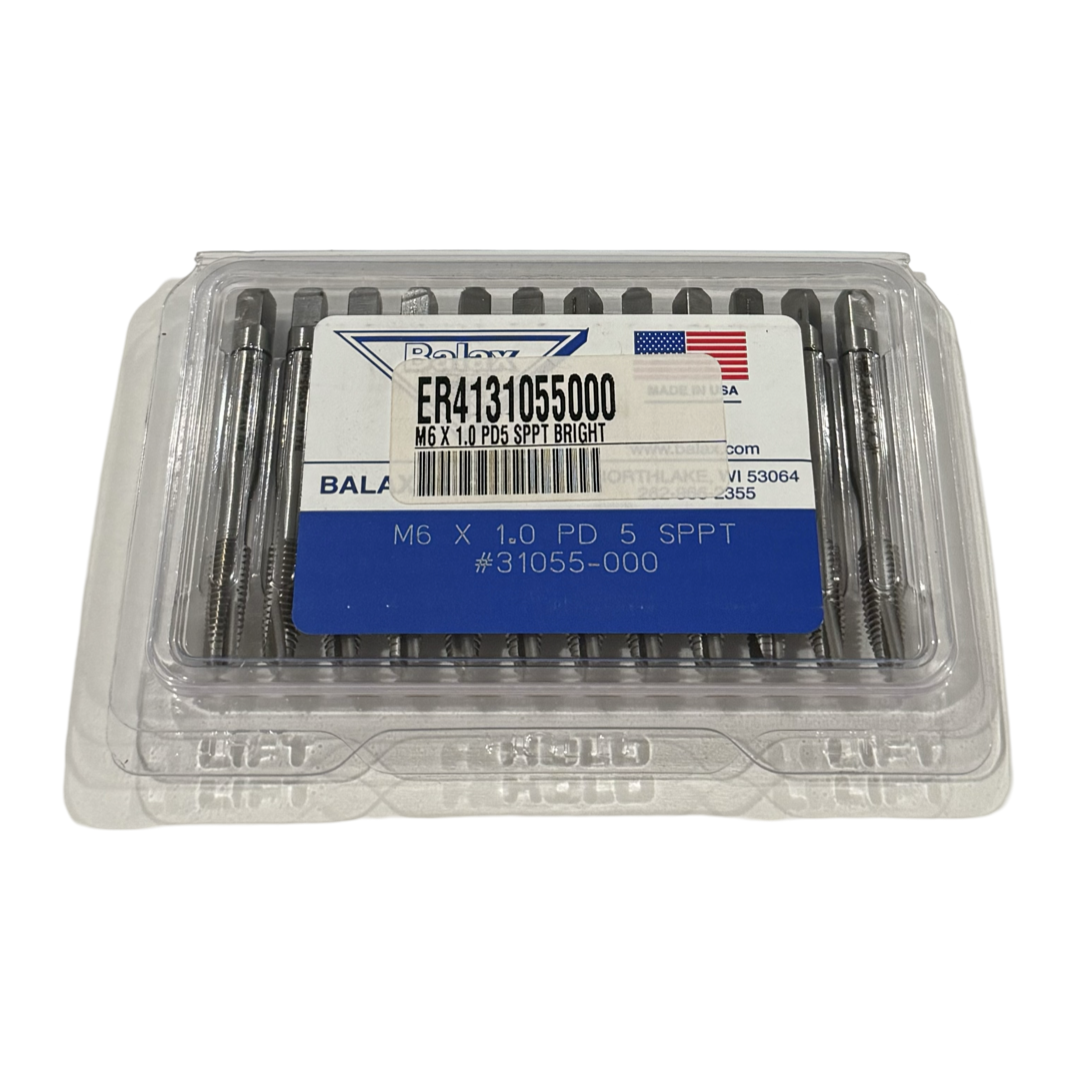

Balax M6 x 1mm HSS Spiral Point Plug Taps 3 Flute 6H D5 10 Pack USA
Balax M6 x 1mm HSS Spiral Point Plug Taps 3 Flute 6H D5 10 Pack USA
Regular price
$22.62 USD
Regular price
$0.00 USD
Sale price
$22.62 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 4 left
Couldn't load pickup availability
| Thread Size (mm) | M6x1 |
| Thread Standard | Metric |
| Chamfer | Plug |
| Material | HSS |
| Coating/Finish | Bright/Uncoated |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Class Of Fit | 6H |
| Thread Limit | D5 |
| Number Of Flutes | 3 |
| Oversize | No |
| Interrupted Thread | No |
| Threads per Inch | 25.4 |
| Overall Length (Inch) | 2-1/2 |
| Thread Pitch (mm) | 1 |
| Material Grade | M42 |
| Thread Length (Decimal Inch) | 1.0000 |
| Thread Length (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 2.5 |
| Cnc Shank | Yes |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Application | Through-Hole Threading |
| Neck Length (Decimal Inch) | 0.3750 |
| Neck Length (Inch) | 3/8 |
| Tapping Depth (Fractional Inch) | 1 |
| Tapping Depth (Decimal Inch) | 1.0000 |
| Square Length (Inch) | 5/16 |
| Square Length (Decimal Inch) | 0.3125 |
| Square Size (Decimal Inch) | 0.191 |
| Material Application | Low-Carbon Steel; 300 Stainless Steel; Brass; Magnesium; Wrought Aluminum Alloy; Copper; Bronze Castings; Die Cast Aluminum; Die Cast Zinc |
| Series | BX100 |
| Style | Spiral Point |
