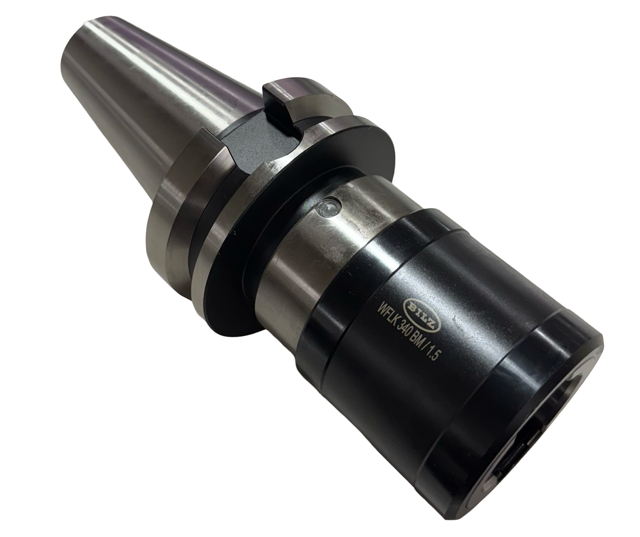

Bilz BT50 Tapping Chuck Tension & Compression Size 3 Adapter
Bilz BT50 Tapping Chuck Tension & Compression Size 3 Adapter
Regular price
$255.99 USD
Regular price
$0.00 USD
Sale price
$255.99 USD
Unit price
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.
Low stock: 2 left
Couldn't load pickup availability
Bilz BT50 Tapping Chuck Tension & Compression Size 3 Adapter
PRODUCT DESCRIPTION
Specifications
| Tapping Style | Tension & Compression |
| Modular Side Connection Type | Taper |
| Taper Size | BT50 |
| Minimum Tap Capacity (mm) | M14 |
| Minimum Tap Capacity (Inch) | 13/16 |
| Maximum Tap Capacity (mm) | M33 |
| Maximum Tap Capacity (Inch) | 1-3/8 |
| Projection (Decimal Inch) | 5.6693 |
| Projection (mm) | 144.00 |
| Quick-change | Yes |
| Nose Diameter (Mm) ( - 2 Decimals) | 78.00 |
| Tap Adapter Size | 3 |
| Through Coolant | No |
| Maximum Pipe Tap Capacity (Inch) | 1 |
| Minimum Pipe Tap Capacity (Inch) | 1/2 |
| Hole Diameter (Mm) ( - 0 Decimals) | 48.00 |
