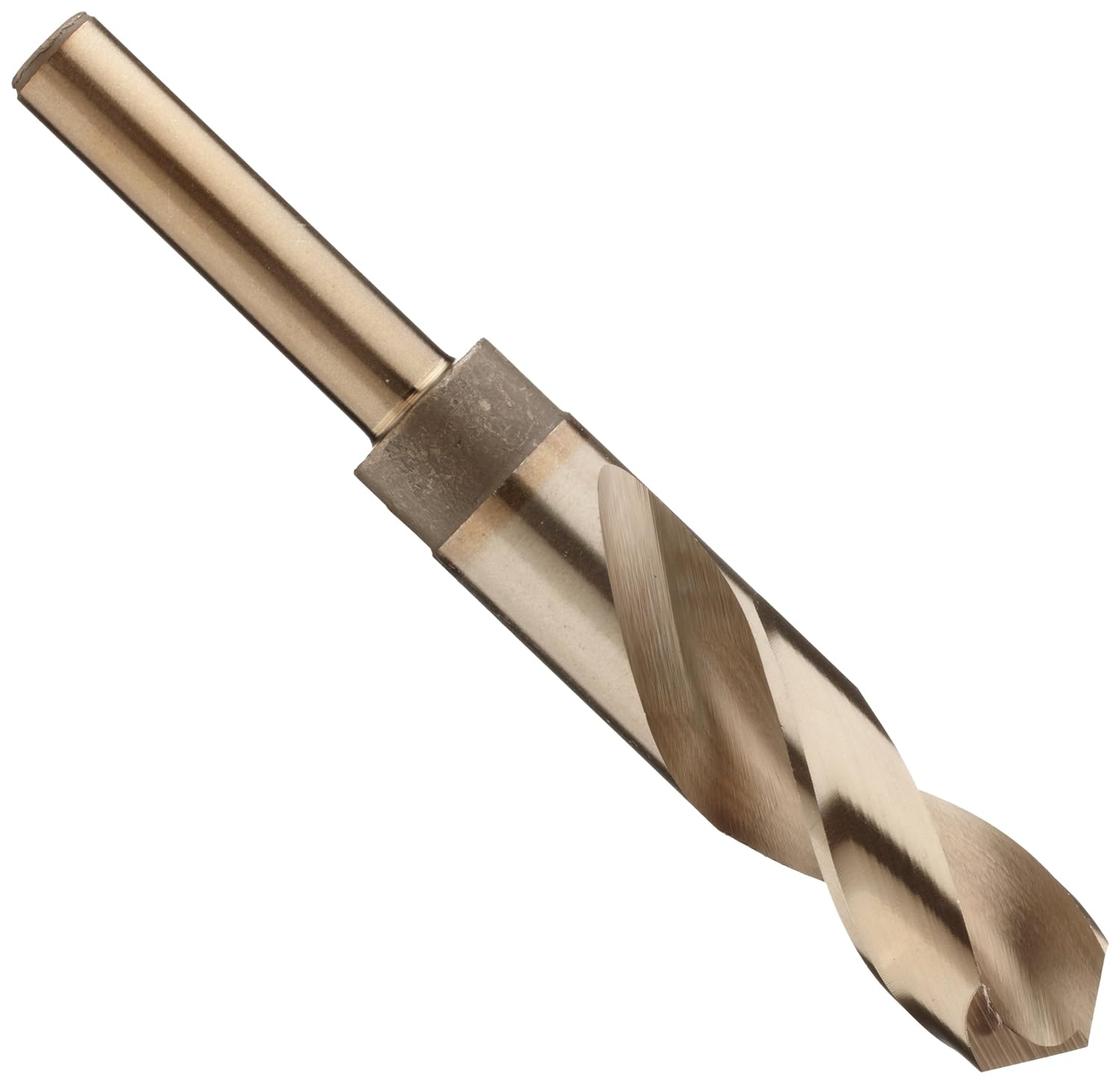

• Chicago Latrobe 190C 1-3/8" Cobalt Drill Bit 1/2" Reduced Shank 118° USA Made
1 1

Michigan Wholesale Tool Supply

Chicago Latrobe 190C 1-3/8" Cobalt Drill Bit 1/2" Reduced Shank 118° USA Made

Chicago Latrobe 190C 1-3/8" Cobalt Drill Bit 1/2" Reduced Shank 118° USA Made

$39.00 USD
$0.00 USD $39.00 USD
Sale Sold out
Shipping calculated at checkout.
Free Shipping: Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our Shipping Policy for more details.

Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.

No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.

Low stock: 1 left

Brand
CHICAGO-LATROBE

Material - Machining
Cobalt

Finish - Machining
Straw/Bronze

Measurement System
Fractional Inch

Drill Bit Size
1-3/8 in

Decimal Equivalent
1.3750

Drill Bit Point Angle
118 °

Drill Bit Point Type
Split Point

Flute Type
Spiral

Number of Flutes
2

Flute Length
3-1/8 in

Maximum Drilling Depth
5-1/2 in

Cutting Direction
Right Hand

Spiral Direction
Right Hand

Helix Angle
28°

Overall Length
6 in

Depth:Dia. Ratio
4xD

Shank Type - Machining
Straight

Shank Dia.
1/2 in

Shank Length
2-1/4 in

Silver & Deming Drill
Yes

Standards
Not Rated

Coolant Fed
Non-Coolant Through

Drill Diameter Tolerance
+0.0000 in /-0.0015 in

Material Grade - Machining
M42

Primary Material Application
Cast Iron; Steel

Primary Material Application ISO Code
K; P

UNSPSC
27112801
