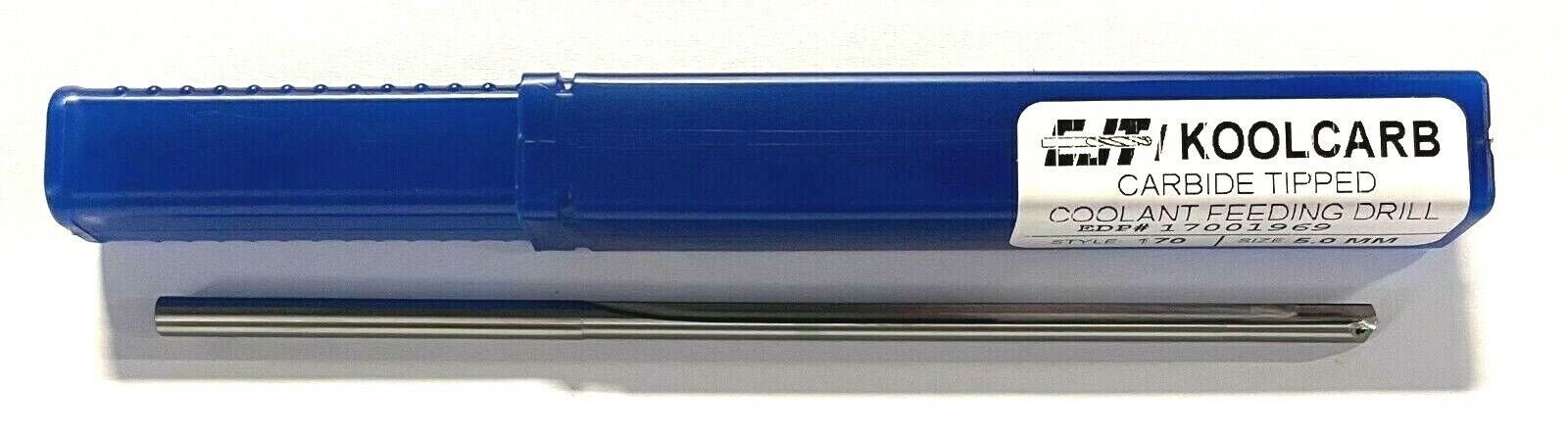

CJT 5mm Carbide Tipped Drill Bit XL Coolant Fed High Performance Straight Flute

PRODUCT DESCRIPTION

CJT

CARBIDE TIPPED EXTRA LONG DRILL BIT

STRAIGHT FLUTE

• ItemExtra Long Drill Bit
• Material - MachiningCarbide Tipped
• Finish - MachiningBright (Uncoated)
• Measurement SystemMetric
• Drill Bit Size5.00 mm
• Decimal Equivalent0.1969
• Drill Bit Point Angle125 Degrees
• Drill Bit Point Type4 Facet Point
• Flute TypeStraight
• Number of Flutes2
• Flute Length3 3/4 in
• Cutting DirectionRight Hand
• Overall Length5 3/4 in
• Depth:Dia. Ratio17xD
• Drill Bit GroupingIndividual
• Drill Length ClassExtra Long
• Shank Type - MachiningStraight
• Shank Dia.5.00 mm
• Shank Length2 in
• StandardsNot Rated
• Coolant FedCoolant Through
• Number of Coolant Holes2
• Drill Point Length1.30 mm
• Drill Diameter Tolerance+0.0000 in /-0.0010 in
• Web ThinningWeb Thinning
• Material Grade - MachiningHigh Performance
• Primary Material ApplicationAll Materials
• Primary Material Application ISO CodeH, K, N, P
