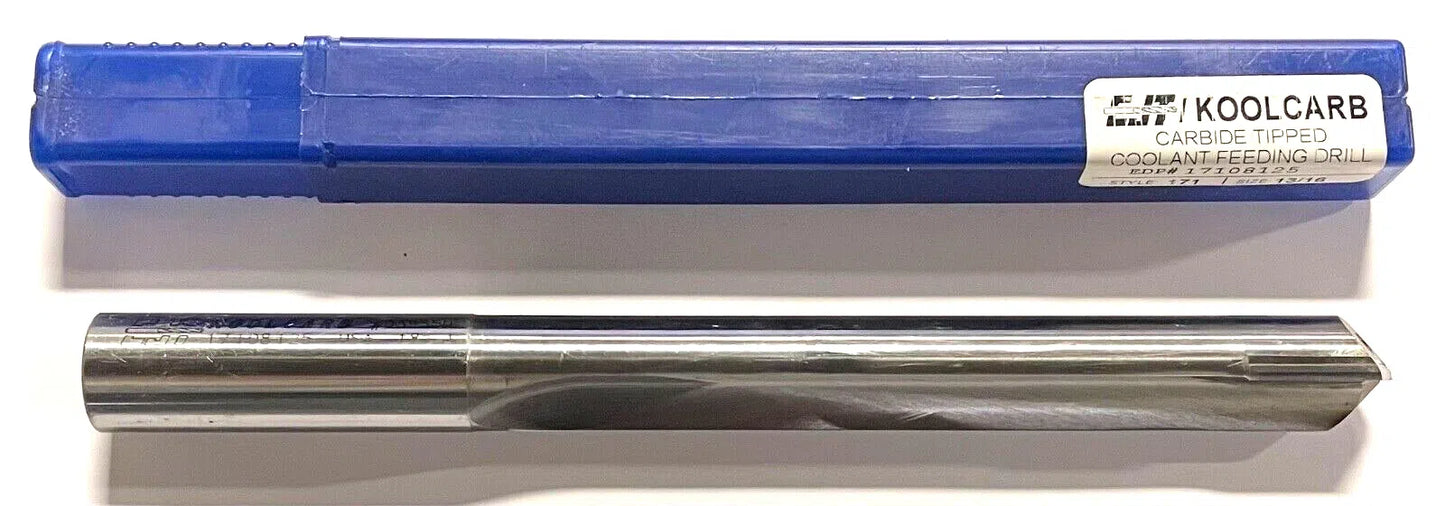

• CJT Koolcarb 13/16" Carbide Tipped Coolant Feeding Drill Straight Flute USA Made
1 1

Michigan Wholesale Tool Supply

CJT Koolcarb 13/16" Carbide Tipped Coolant Feeding Drill Straight Flute USA Made

CJT Koolcarb 13/16" Carbide Tipped Coolant Feeding Drill Straight Flute USA Made

$62.24 USD
$0.00 USD $62.24 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 6 left
CJT KOOLCARB

USA MADE

CARBIDE TIPPED COOLANT FEEDING DRILL STRAIGHT FLUTE

  • Drill Bit Grouping: Drill Bit
  • Item: Straight Flute Drill Bit
  • Drill Bit Dimension Type: Fractional Inch
  • Drill Bit Size: 13/16 in
  • Decimal Equivalent: 0.8125
  • Drill Bit Point Angle: 125 Degrees
  • Drill Bit Material: Carbide-Tipped
  • Drill Bit Finish: Uncoated
  • Overall Length: 8 9/16 in
  • Flute Length: 6 1/16 in
  • Depth:Dia. Ratio: 6xD
  • Cutting Direction: Right Hand
  • Material: Carbide-Tipped
  • Coolant Through: Yes
  • Point Type: 4 Facet
  • Shank Dia.: 13/16 in
  • Standards: Not Rated
  • Depth x Dia. Ratio: 6xD
  • Helix Angle: 0 Degrees
  • Drilling Depth: 4.4000"
  • Coolant Fed: Coolant Through
  • Shank Length: 2-1/2 in
  • Number of Flutes: 2
  • Primary Material Application: All Materials
  • Flute Type: Straight
  • Aircraft Drill: No
  • Shank Type - Machining: Straight
  • Number of Coolant Holes: 2
  • Primary Material Application ISO Code: H, K, N, P
  • Drill Bit Point Type: 4 Facet Point
  • Finish - Machining: Bright (Uncoated)
  • Material - Machining: Carbide Tipped
  • Measurement System: Fractional Inch
  • Drill Point Length: 0.21 mm
  • Maximum Drilling Depth: 6-1/16 in
  • Drill Length Class: Jobber Length
  • Drill Diameter Tolerance: +0.0000 in /-0.0010 in
  • Country of Origin (subject to change): United States
