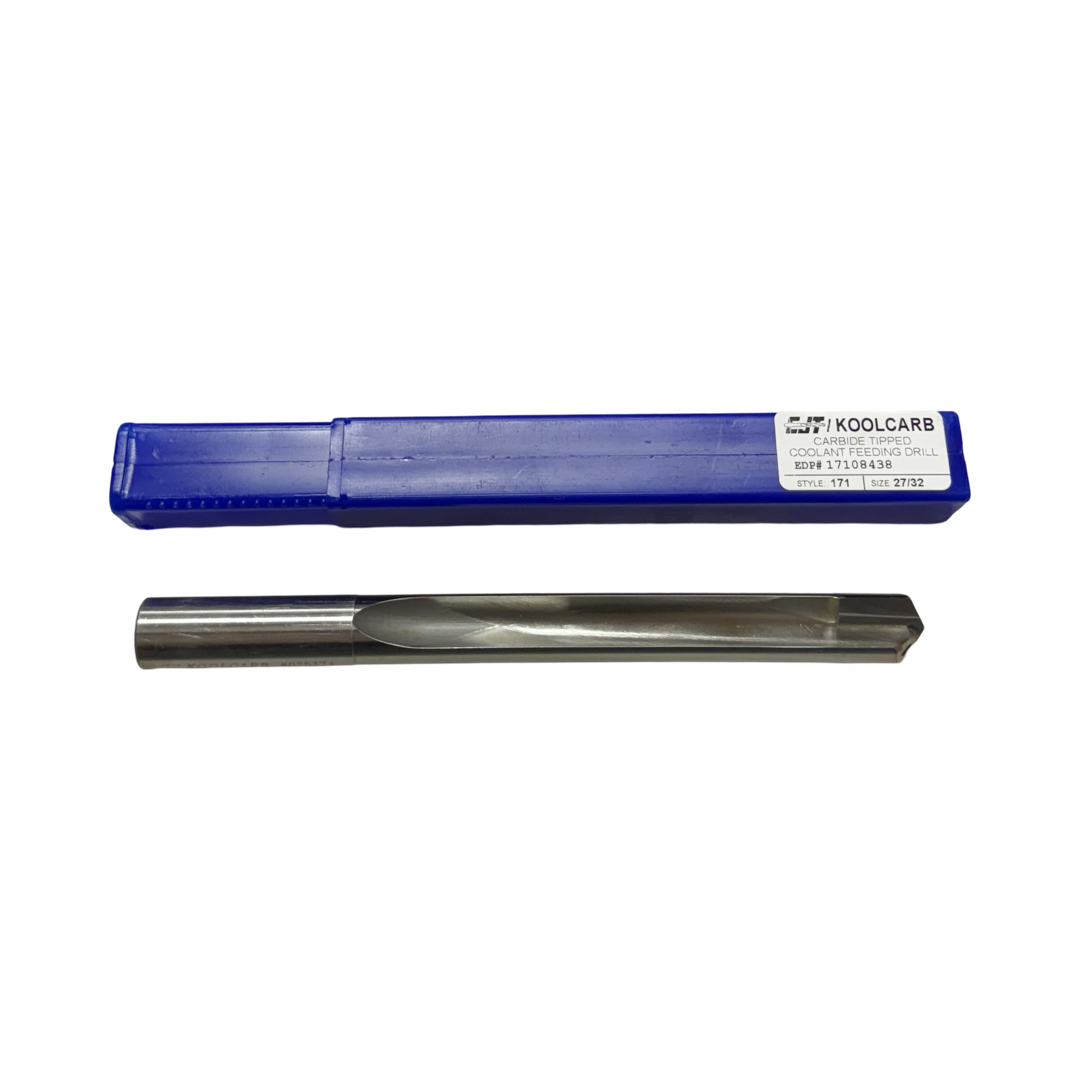

CJT KoolCarb 27/32" Carbide Tipped Drill Bit Straight Flute Coolant Thru 125 Deg

PRODUCT DESCRIPTION

Drill Bit Type	Straight-Flute
Drill Bit Size (Inch)	27/32
Tool Material	Carbide
Coating/Finish	Bright/Uncoated
Flute Length (Inch)	6-1/2
Flute Length (Decimal Inch)	6.5000
Drill Point Angle	125
Overall Length (Inch)	9
Shank Diameter (Decimal Inch)	0.8438
Coolant Through	Yes
Drill Bit Size (Decimal Inch)	0.8438
Overall Length (Decimal Inch)	9.0000
Series	171
Number Of Flutes	2
Point Type	Faceted
Cutting Direction	Right Hand
Web Thinning	Web-Thinned
Coolant-Hole Shape	Round
Drill Bit Diameter Tolerance	+0.000 to -0.025 mm; +0.0000 to -0.0010 in
Primary Workpiece Material	Bronze; Cast Aluminum; Ductile Iron; Cast Iron; Tool Steel; Abrasive Materials
Secondary Workpiece Material	Bronze; Cast Aluminum; Ductile Iron; Cast Iron; Tool Steel; Abrasive Materials
Maximum Drilling Depth (Decimal Inch)	4.9000
Shank Diameter (Inch)	27/32
