Low stock: 2 left

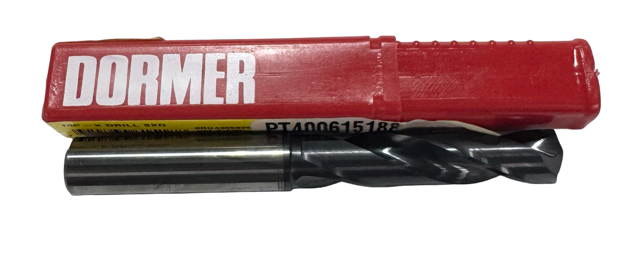

Domer 11mm Solid Carbide Drill 3xD TiAlN Coated 140° Point

PRODUCT DESCRIPTION

Description	SC Drill; 11 mm Dia. x 12 mm Shank Dia. x 102 mm OAL x 55 mm LCF ; 140 Degrees ; 3xD ; Continously Thinned Web (CTW) Flute ; TiAlN ; Series R458
Body Material	Carbide
Brand	Dormer Pramet
Coating	TiAlN
Connection Diameter Machine Side Dconms	12 mm
Coolant Supply Property CSP	External
Cutting Direction Hand	Right-Hand
Cutting Edge Material	Carbide
Decimal Equivalent	0.4331"
Drill Bit Size Cutting Diameter DC	11 mm
Drill Bit Size Cutting Diameter DC Metric	11 mm
Flute Count Nof	2
Flute Type	Continously Thinned Web (CTW)
Length Chip Flute LCF	55 mm
Length Group	3xD
Measurement Type	Metric
Overall Length Oal	102 mm
Point Angle Sig	140 Degrees
Serieslist	R458
Shank Length LS	45 mm
Shank Type	HA
Shape	Solid Drills
Tool Type	Solid Drills
Usable Length Lu	55 mm
