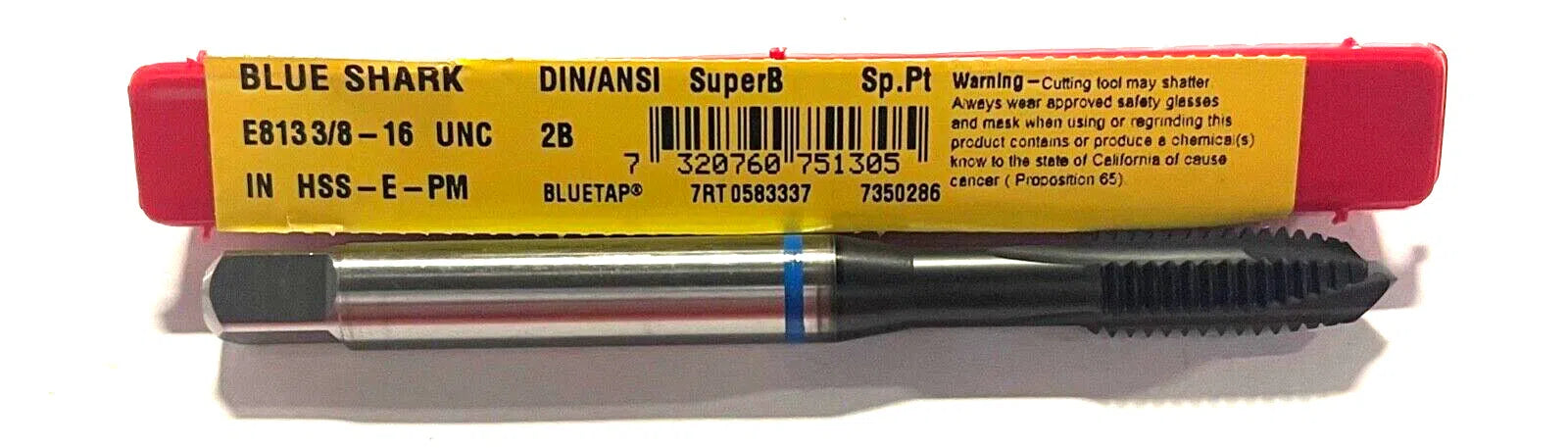

Domer 3/8-16 HSS-E-PM Spiral Point Plug Tap Blue Shark Machine Tap Super B 4FL
Domer 3/8-16 HSS-E-PM Spiral Point Plug Tap Blue Shark Machine Tap Super B 4FL
Regular price
$10.70 USD
Regular price
$0.00 USD
Sale price
$10.70 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 1 left
Couldn't load pickup availability
DORMER
HSS-E-PM BLUE SHARK SPIRAL POINT MACHINE TAP
| Thread Standard | UNC | Applicable Material | Stainless Steel |
| Thread Size | 3/8″ - 16 | Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Thread Diameter Size (TDZ) | 3/8″ | Thread Cutting Part Length (THL) | 0.787″ |
| Threads per Inch (TPI) | 16 | Flute Helix Angle (FHA) | 0 Degrees |
| Thread Tolerance Class (TCTR) | H5 | Tapping Prehole Diameter (Pre-hole) | 5/16″ |
| Usable Length (LU) | 1.535″ | Flute Length | 0.787″ |
| Overall Length (OAL) | 3.937″ | End Shape | Spiral Point |
| Chamfer | 3.5P-5P | Style | Plug |
| Coating | Super-B | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS-E PM | Length Group | 2.5xD |
| Standard | DIN ANSI | Measurement Type | Fractional |
| Tool Type | Machine Tap | Series/List # | E813 |
| Special Feature | Blue Shark |
