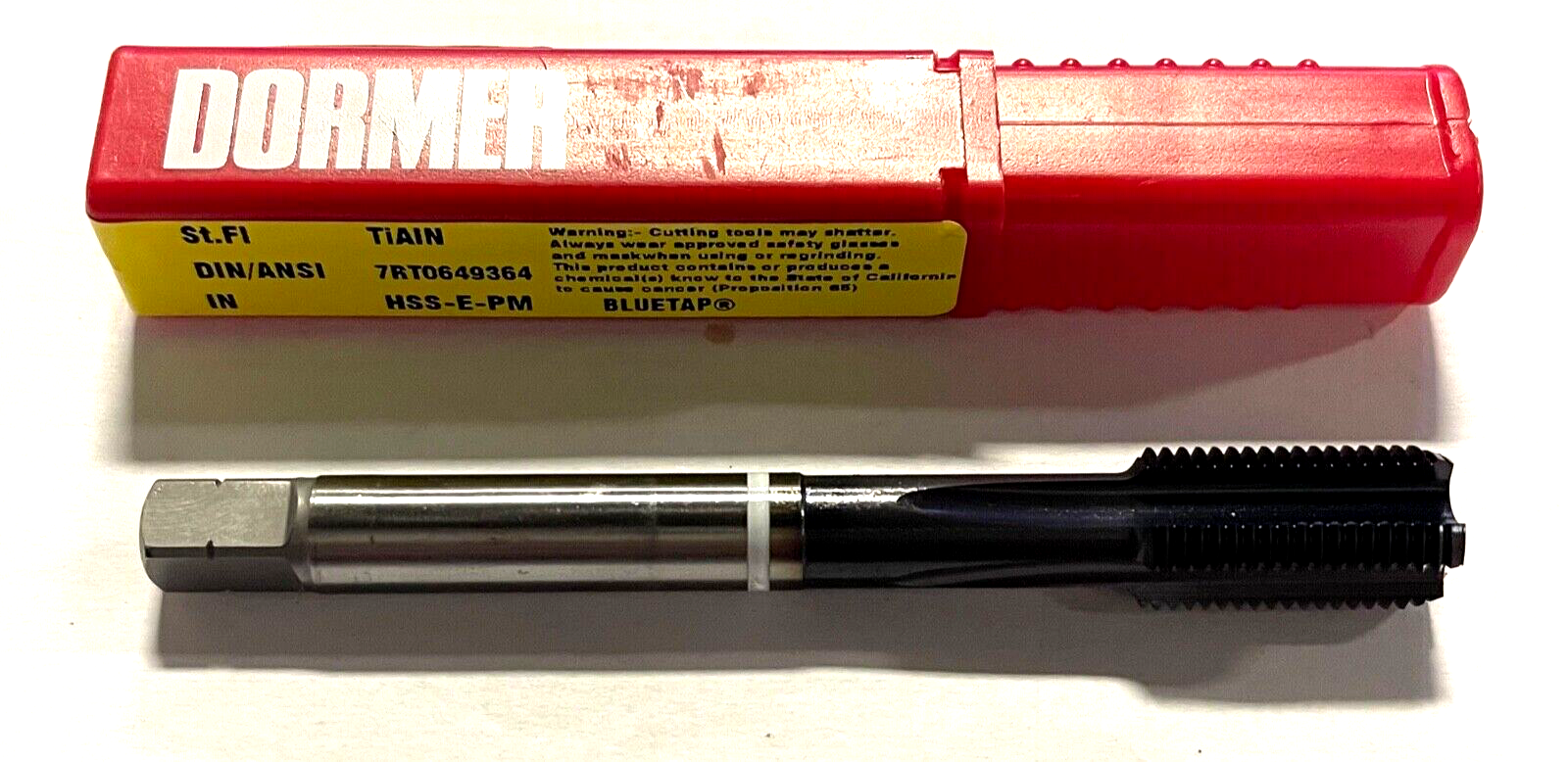

Dormer 1/2-20 HSS-E-PM Machine Tap TiAlN/Top White Ring Bottoming 4FL H5 Tap
Dormer 1/2-20 HSS-E-PM Machine Tap TiAlN/Top White Ring Bottoming 4FL H5 Tap
Regular price
$22.56 USD
Regular price
$0.00 USD
Sale price
$22.56 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 6 left
Couldn't load pickup availability
DORMER
HSS-E-PM MACHINE TAP
| Thread Diameter Size (TDZ) | 1/2″ | Tool Type | Machine Tap |
| Threads per Inch (TPI) | 20 | Coating | TiAlN/Top |
| Thread Standard | UNF | Tapping Prehole Diameter (Pre-hole) | 29/64″ |
| Overall Length (OAL) | 3.937″ | Flute Length | 0.827″ |
| Thread Cutting Part Length (THL) | 0.827″ | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 0.367″ | Style | Bottoming |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees | Coolant Supply Property (CSP) | Axial Coolant |
| Applicable Material | Cast Iron | Length Group | 2.5D |
| Cutting Edge Material | HSS-E-PM | Square Size | 0.273″ |
| Thread Tolerance Class (TCTR) | H5 | Measurement Type | Fractional |
| Special Feature | White Ring | Series/List # | E915 |
| Standard | DIN/ANSI | Thread Size | 1/2″ - 20 |
