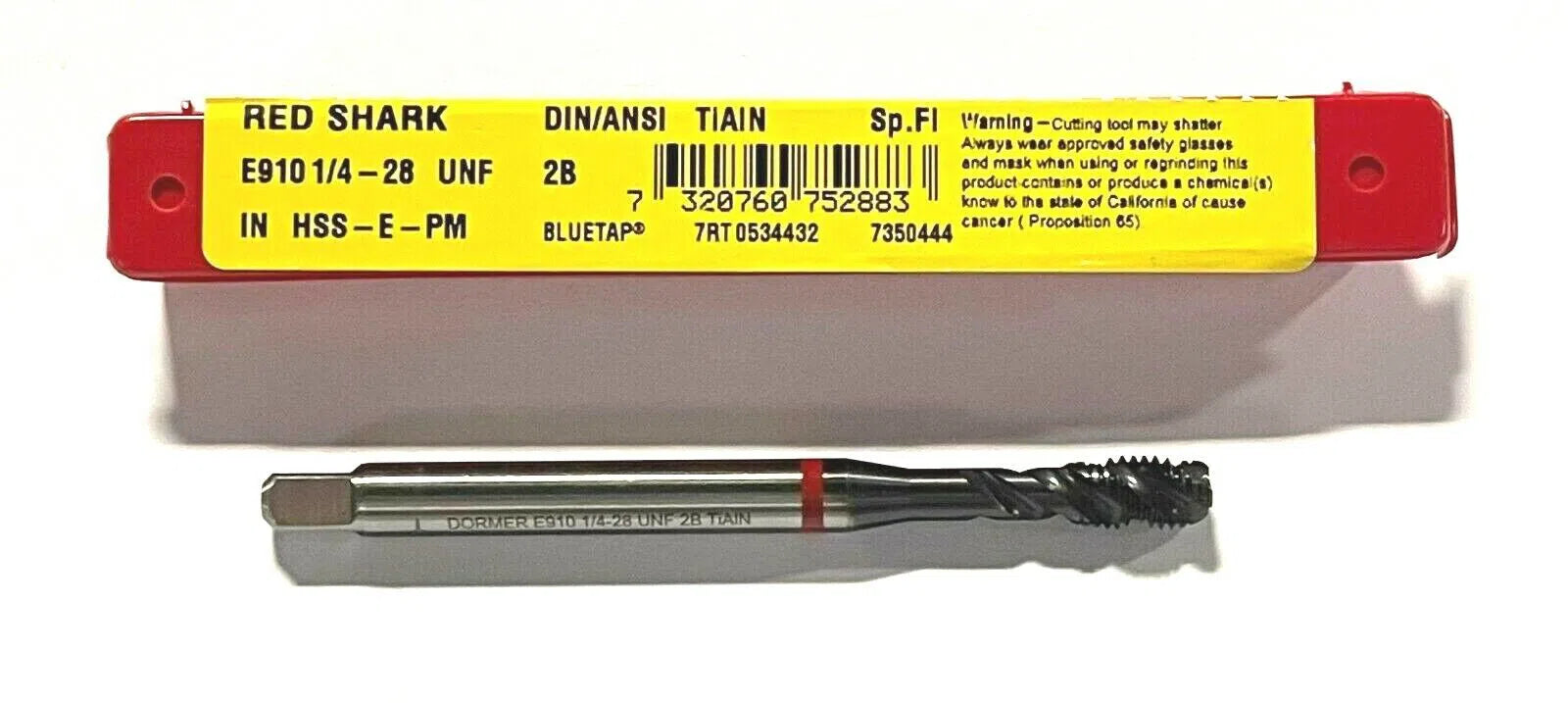

Dormer 1/4-28 Tap HSS-E-PM Semi Bottoming Spiral Flute Machine Tap TiAlN Coating
Dormer 1/4-28 Tap HSS-E-PM Semi Bottoming Spiral Flute Machine Tap TiAlN Coating
Regular price
$7.83 USD
Regular price
$0.00 USD
Sale price
$7.83 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 4 left
Couldn't load pickup availability
DORMER
SEMI BOTTOMING SPIRAL FLUTE MACHINE TAP
| Thread Diameter Size (TDZ) | 1/4″ | Tool Type | Machine Tap |
| Threads per Inch (TPI) | 28 | Chamfer | 2P-3P |
| Thread Standard | UNF | Coating | TiAlN/Top |
| Overall Length (OAL) | 3.15″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.394″ | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Length Group | 2.5xD |
| Applicable Material | Steel | Square Size | 0.189″ |
| Cutting Edge Material | HSS-E PM | Measurement Type | Fractional |
| Thread Tolerance Class (TCTR) | H4 | Series/List # | E910 |
| Special Feature | Red Shark | Thread Size | 1/4″ - 28 |
| Standard | DIN ANSI | Standard Pack Size | 1 |
