Michigan Wholesale Tool Supply

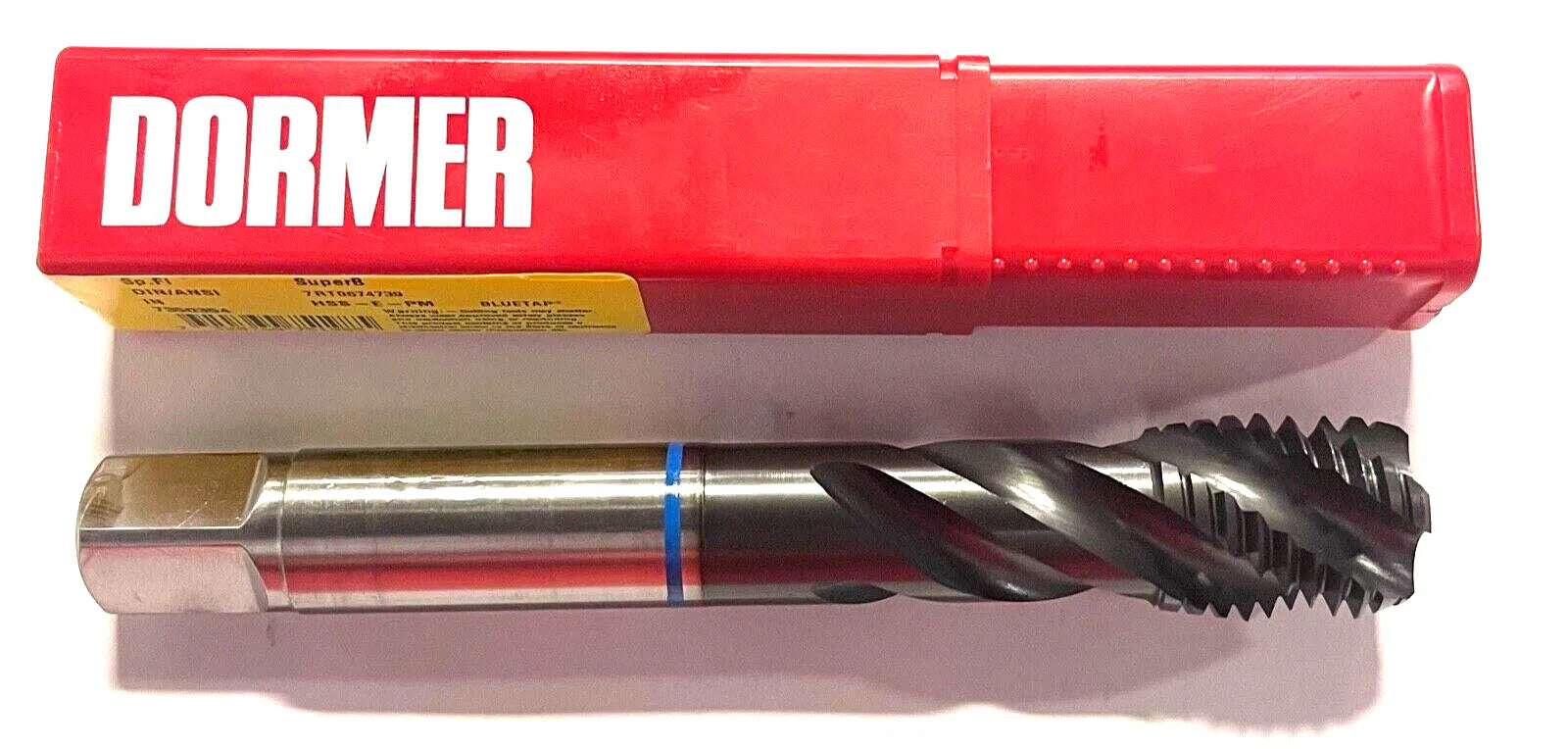

Dormer 1"-8 HSS-E PM Spiral Flute Blue Shark Tap Semi Bottoming Super B Coated
Dormer 1"-8 HSS-E PM Spiral Flute Blue Shark Tap Semi Bottoming Super B Coated
Regular price
$61.88 USD
Regular price
$0.00 USD
Sale price
$61.88 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 6 left
Couldn't load pickup availability
DORMER
SPIRAL FLUTE BLUE SHARK MACHINE TAP
SPIRAL FLUTE- SEMI BOTTOMING
| Thread Diameter Size (TDZ) | 1″ | Standard | DIN ANSI |
| Threads per Inch (TPI) | 8 | Tool Type | Machine Tap |
| Thread Standard | UNC | Chamfer | 2P-3P |
| Overall Length (OAL) | 6.299″ | Coating | Super-B |
| Thread Cutting Part Length (THL) | 1.181″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.8″ | Style | Semi-Bottoming |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 40 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | Stainless Steel | Length Group | 2.5xD |
| Cutting Edge Material | HSS-E PM | Square Size | 0.597″ |
| Thread Tolerance Class (TCTR) | H6 | Measurement Type | Fractional |
| Special Feature | Blue Shark | Series/List # | E812 |
