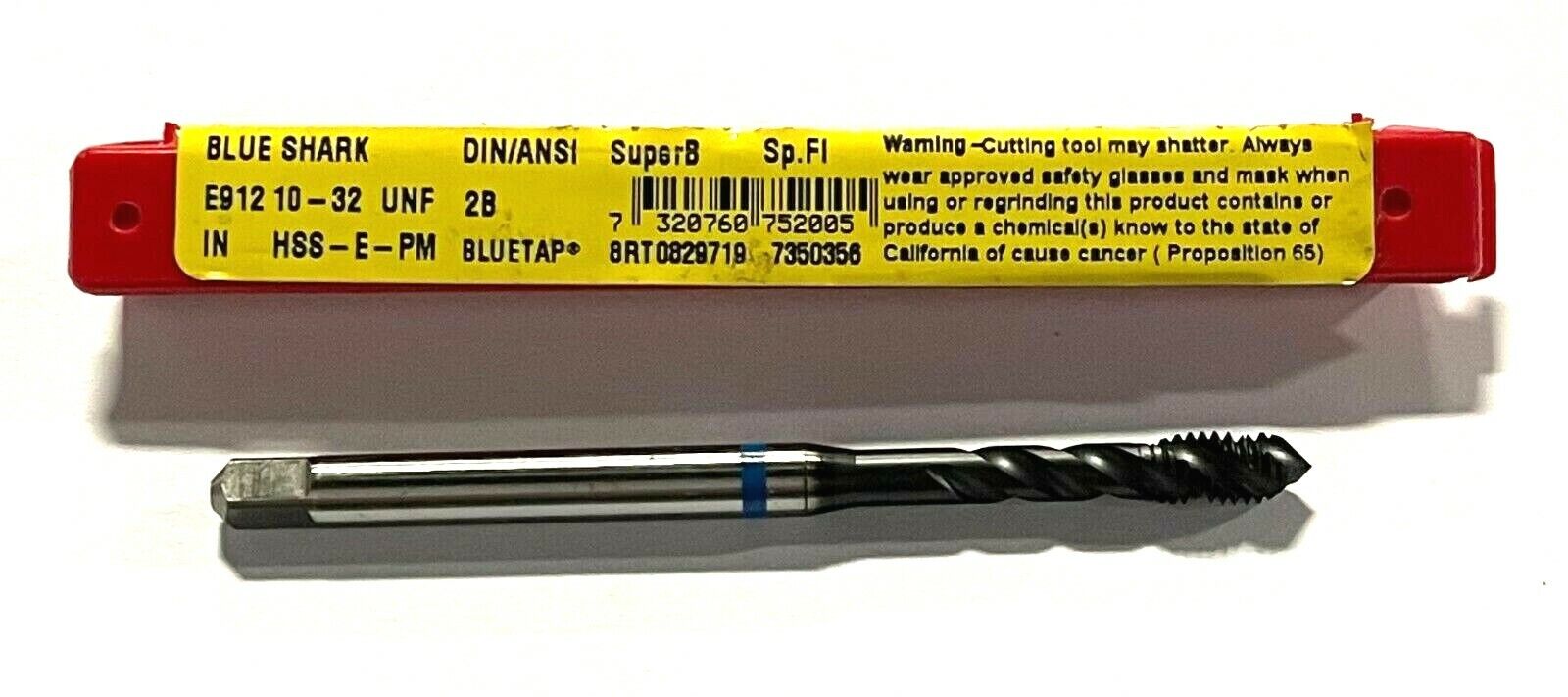

Dormer 10-32 Tap HSS-E-PM Semi Bottoming Spiral Flute Super B Coating H3 Tap
Dormer 10-32 Tap HSS-E-PM Semi Bottoming Spiral Flute Super B Coating H3 Tap
Regular price
$7.03 USD
Regular price
$0.00 USD
Sale price
$7.03 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 1 left
Couldn't load pickup availability
DORMER
SEMI BOTTOMING SPIRAL FLUTE MACHINE TAP
| Thread Diameter Size (TDZ) | #10 | Standard | DIN ANSI |
| Threads per Inch (TPI) | 32 | Tool Type | Machine Tap |
| Thread Standard | UNF | Chamfer | 2P-3P |
| Overall Length (OAL) | 2.756″ | Coating | Super-B |
| Thread Cutting Part Length (THL) | 0.315″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Style | Semi-Bottoming |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 40 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | Stainless Steel | Length Group | 2.5xD |
| Cutting Edge Material | HSS-E PM | Square Size | 0.15″ |
| Thread Tolerance Class (TCTR) | H3 | Measurement Type | Machine Screw |
