Michigan Wholesale Tool Supply

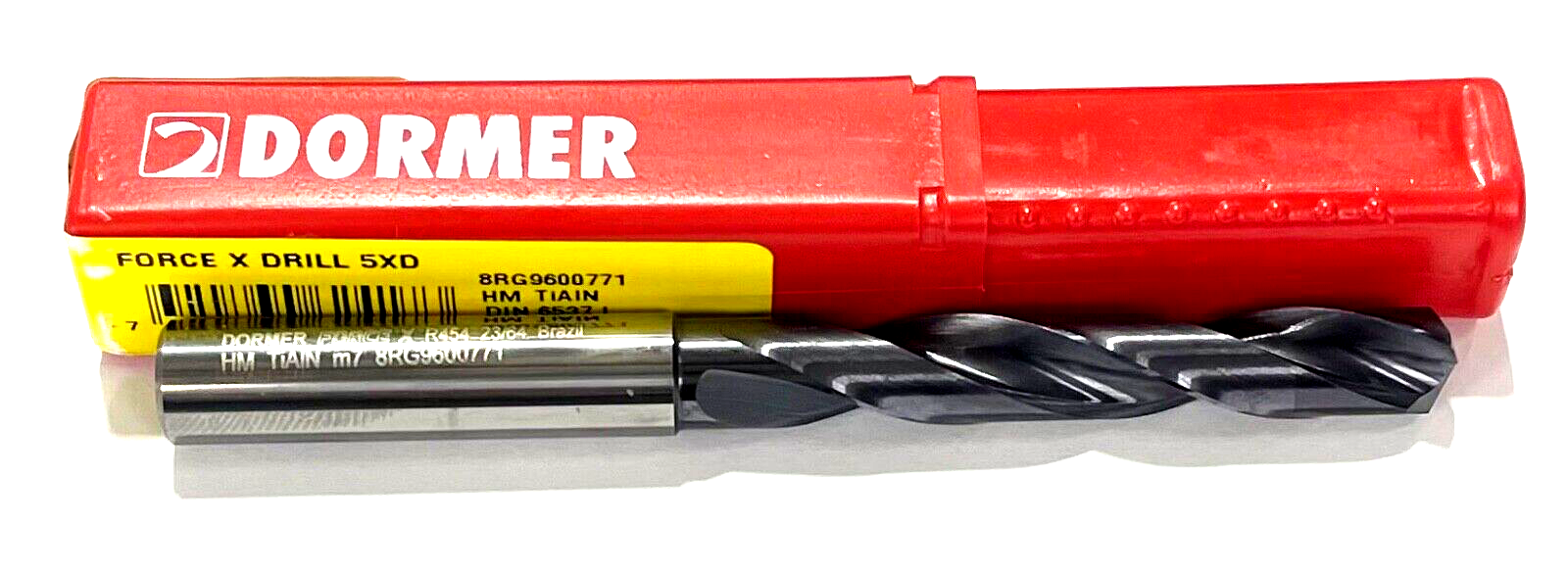

Dormer 23/64" Solid Carbide Drill 5xD TiAlN Coating 2 Flute 140° 5979838
Dormer 23/64" Solid Carbide Drill 5xD TiAlN Coating 2 Flute 140° 5979838
Regular price
$18.20 USD
Regular price
$0.00 USD
Sale price
$18.20 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 4 left
Couldn't load pickup availability
DORMER
SOLID CARBIDE DRILL 5XD
| Drill Bit Size / Cutting Diameter (DC) | 23/64″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 23/64″ | Tool Type | Solid Carbide Drill |
| Decimal Equivalent | 0.3594″ | Flute Type | Continously Thinned Web (CTW) |
| Length Group | 5xD | Measurement Type | Inch |
| Coating | TiAlN | Style | Force X |
| Applicable Material | | Carbide | | Series/List # | R454 |
| Application | | Drilling | | Usable Length (LU) | 61 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Length Chip Flute (LCF) | 61 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 103 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Shank Length (LS) | 40 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | HA | Body Material | Carbide |
