Michigan Wholesale Tool Supply

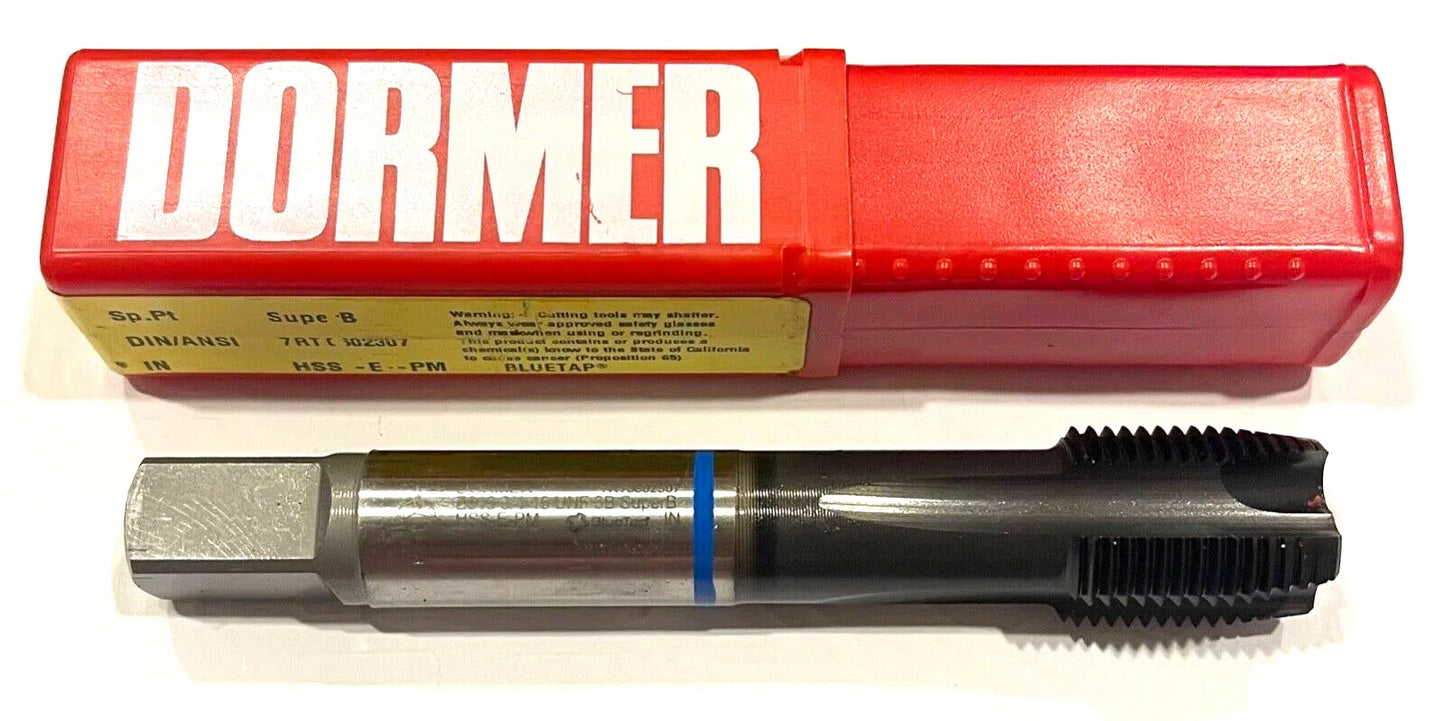

Dormer 3/4-16 Machine Tap HSS-E-PM Spiral Point Plug Tap Blue Ring 4 Flute
Dormer 3/4-16 Machine Tap HSS-E-PM Spiral Point Plug Tap Blue Ring 4 Flute
Regular price
$34.34 USD
Regular price
$0.00 USD
Sale price
$34.34 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 5 left
Couldn't load pickup availability
DORMER
HSS-E-PM HIGH PERFORMANCE MACHINE TAP
| Thread Standard | UNF | Applicable Material | Stainless Steel |
| Thread Size | 3/4″ - 16 | Connection Diameter Machine Side (DCONMS) | 0.59″ |
| Thread Diameter Size (TDZ) | 3/4″ | Thread Cutting Part Length (THL) | 0.906″ |
| Threads per Inch (TPI) | 16 | Flute Helix Angle (FHA) | 0 Degrees |
| Thread Tolerance Class (TCTR) | H3 | Tapping Prehole Diameter (Pre-hole) | 11/16″ |
| Overall Length (OAL) | 4.331″ | Flute Length | 0.906″ |
| Chamfer | 3.5P-5P | End Shape | Spiral Point |
| Coating | Super-B | Style | Plug |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSS-E PM | Coolant Supply Property (CSP) | External |
| Standard | DIN ANSI | Length Group | 2.5xD |
| Tool Type | Machine Tap | Measurement Type | Fractional |
| Special Feature | Blue Shark | Series/List # | E913 |
