Michigan Wholesale Tool Supply

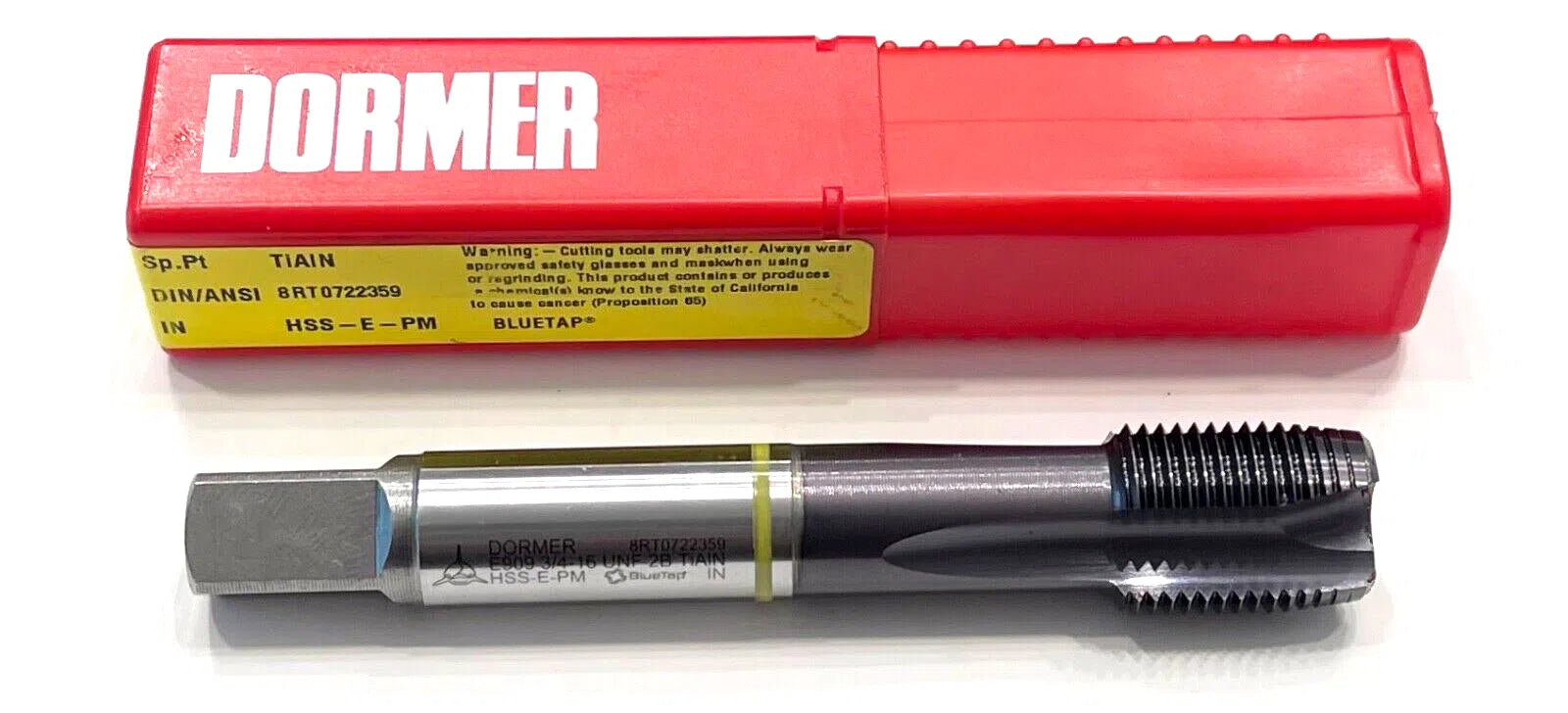

Dormer 3/4"-16 UNF HSSE-PM Spiral Point Plug Tap Yellow Ring 3FL TiAlN 2B
Dormer 3/4"-16 UNF HSSE-PM Spiral Point Plug Tap Yellow Ring 3FL TiAlN 2B
Regular price
$37.85 USD
Regular price
$0.00 USD
Sale price
$37.85 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 6 left
Couldn't load pickup availability
DORMER
HSSE-PM
SPIRAL POINT PLUG TAP - YELLOW RING
| Thread Standard | | UNF | | Applicable Material | | Steel | |
| Thread Size | 3/4″ - 16 | Connection Diameter Machine Side (DCONMS) | 0.59″ |
| Thread Diameter Size (TDZ) | 3/4″ | Thread Cutting Part Length (THL) | 0.906″ |
| Threads per Inch (TPI) | 16 | Flute Helix Angle (FHA) | 0 Degrees |
| Thread Tolerance Class (TCTR) | | H5 | | Tapping Prehole Diameter (Pre-hole) | 11/16″ |
| Overall Length (OAL) | 4.331″ | Flute Length | 0.906″ |
| Chamfer | 3.5P-5P | End Shape | Spiral Point |
| Coating | TiAlN | Style | Plug |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSSE PM | Coolant Supply Property (CSP) | External |
| Standard | | DIN | ANSI | | Length Group | 2.5xD |
| Tool Type | Machine Tap | Measurement Type | Fractional |
| Special Feature | Yellow Shark | Series/List # | E909 |
