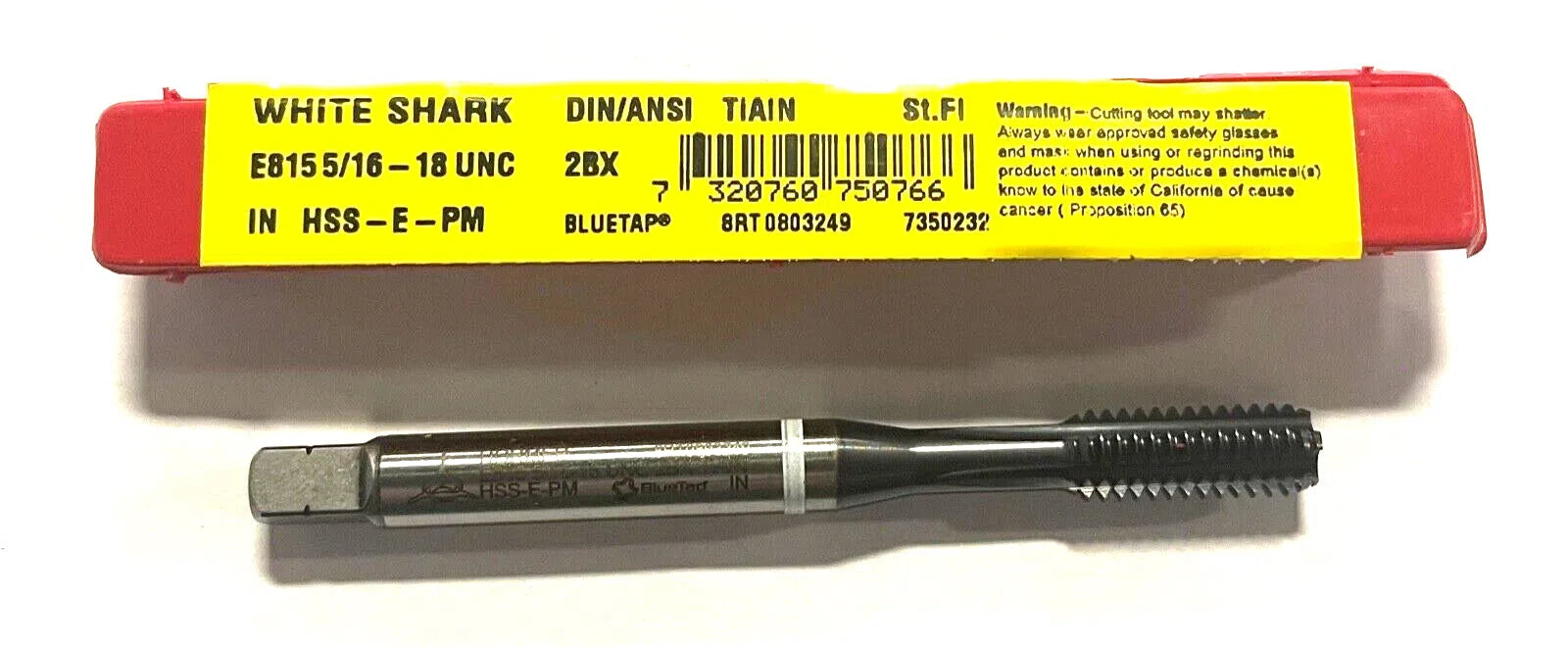

Dormer 5/16-18 HSS-E-PM Machine Tap TiAlN/Top White Ring 4 Flute Bottoming Tap
Dormer 5/16-18 HSS-E-PM Machine Tap TiAlN/Top White Ring 4 Flute Bottoming Tap
Regular price
$16.94 USD
Regular price
$0.00 USD
Sale price
$16.94 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 6 left
Couldn't load pickup availability
DORMER
HSS-E-PM MACHINE TAP
| Thread Diameter Size (TDZ) | 5/16″ | Tool Type | Machine Tap |
| Threads per Inch (TPI) | 18 | Coating | TiAlN/Top |
| Thread Standard | UNC | Tapping Prehole Diameter (Pre-hole) | F |
| Overall Length (OAL) | 3.543″ | Flute Length | 0.787″ |
| Thread Cutting Part Length (THL) | 0.787″ | Flute Type | Straight |
| Usable Length (LU) | 1.339″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | Axial Coolant |
| Flute Helix Angle (FHA) | 0 Degrees | Length Group | 2.5D |
| Applicable Material | Cast Iron | Square Size | 0.236″ |
| Cutting Edge Material | HSS-E-PM | Measurement Type | Fractional |
| Thread Tolerance Class (TCTR) | H5 | Series/List # | E815 |
| Special Feature | White Ring | Thread Size | 5/16″ - 18 |
| Standard | DIN/ANSI |
