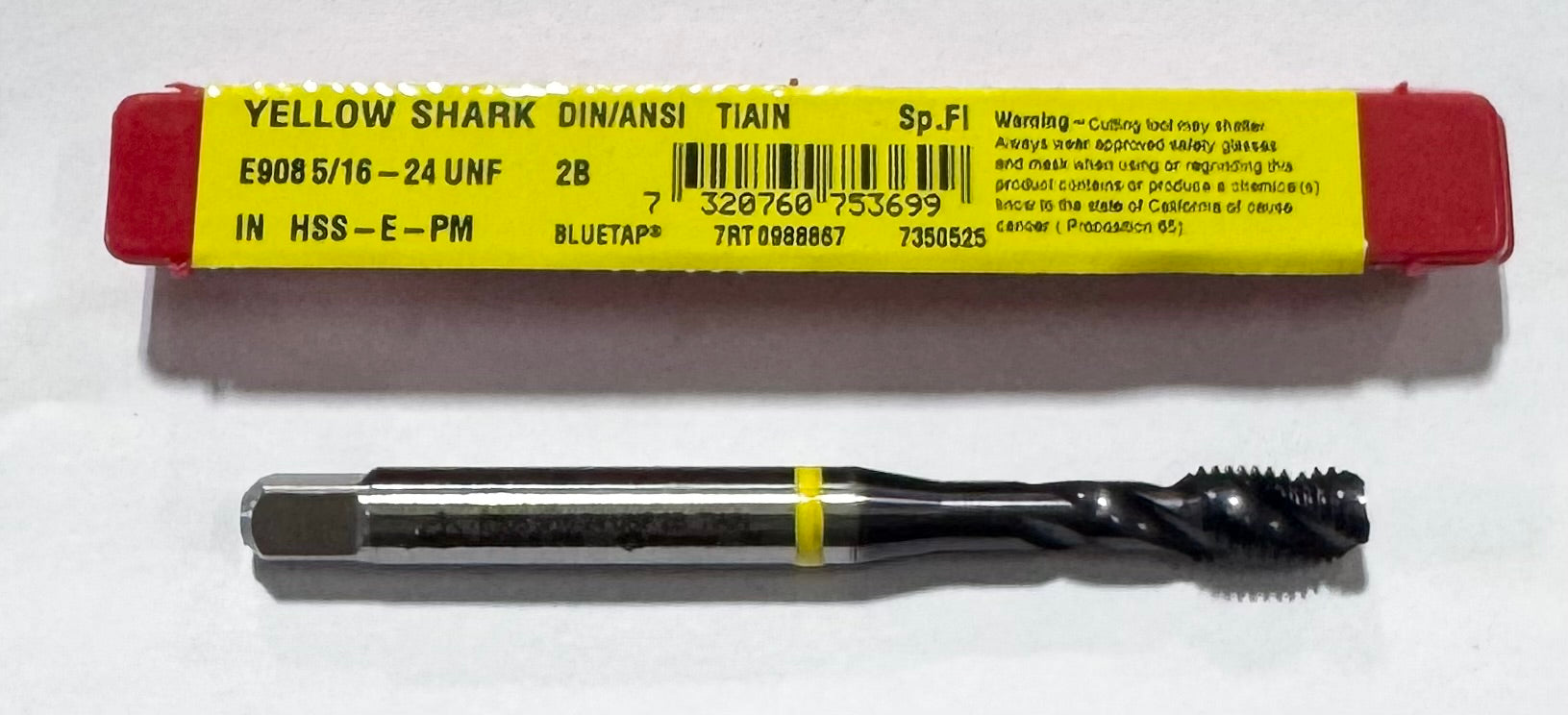

Dormer 5/16"-24 Cobalt Spiral Flute Tap, TiAlN, 3 Flute, H4 Yellow Ring
Dormer 5/16"-24 Cobalt Spiral Flute Tap, TiAlN, 3 Flute, H4 Yellow Ring
Regular price
$14.99 USD
Regular price
$0.00 USD
Sale price
$14.99 USD
Unit price
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 4 left
Couldn't load pickup availability
Dormer 5/16"-24 Cobalt Spiral Flute Tap, UNF, TiAlN, 3 Flute, H4 Yellow Ring
PRODUCT DESCRIPTION
| Description | Spiral Flute Tap; 5/16" - 24 ; 3.543" OAL ; 3 FL ; HSSE-PM ; TiAlN ; H4 ; Series E908 |
|---|---|
| Brand | Dormer |
| Chamfer | 2P-3P |
| Coating | TiAlN/Top |
| Connection Diameter Machine Side Dconms | 0.318" |
| Coolant Supply Property CSP | External |
| Cutting Direction Hand | Right-Hand |
| Cutting Edge Material | HSS-E-PM |
| Flute Count Nof | 3 |
| Flute Helix Angle Fha | 40 Degrees |
| Flute Type | Spiral |
| Length Group | 2xD |
| Measurement Type | Inch |
| Overall Length Oal | 3.543" |
| Serieslist | E908 |
| Special Feature | Yellow Shark |
| Standard | DIN|ANSI |
| Thread Cutting Part Length THL | 0.472" |
| Thread Diameter Size TDZ | 5/16" |
| Thread Standard | UNF |
| Thread Tolerance Class TCTR | H4 |
| Threads Per Inch Tpi | 24 |
| Tool Type | Machine Tap |
| Trade Name | Shark Taps |
