Low stock: 6 left

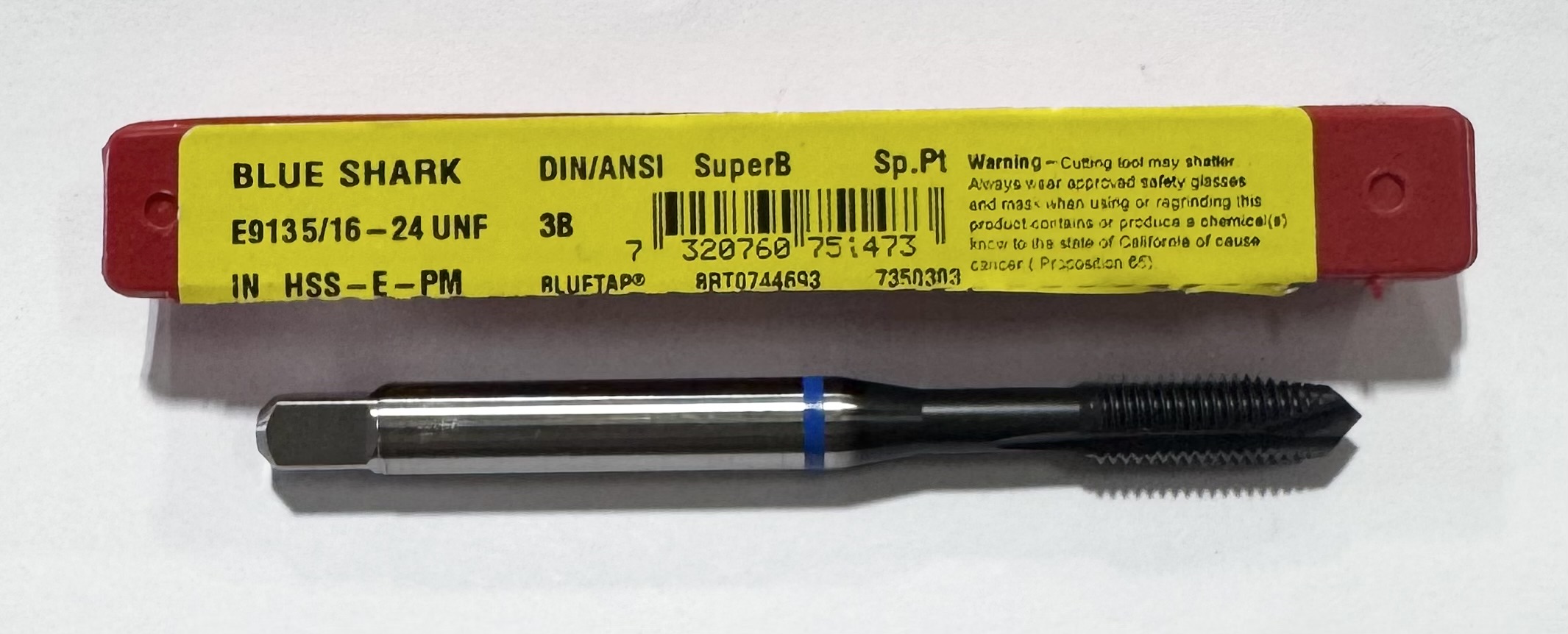

Dormer 5/16"-24 Cobalt Spiral Point Plug Tap, UNF, Super B Coated, 3 Flute H3

PRODUCT DESCRIPTION

Description	Spiral Point Tap; 5/16" - 24 ; 3.543" OAL ; 3 FL ; HSSE-PM ; H3 ; Series E913
Brand	Dormer
Chamfer	3.5P-5P
Coating	Super-B
Connection Diameter Machine Side Dconms	0.318"
Coolant Supply Property CSP	External
Cutting Direction Hand	Right-Hand
Cutting Edge Material	HSS-E-PM
End Shape	Spiral Point
Flute Count Nof	3
Flute Helix Angle Fha	0 Degrees
Flute Length	0.709"
Length Group	2.5xD
Measurement Type	Inch
Overall Length Oal	3.543"
Serieslist	E913
Special Feature	Blue Shark
Standard	DIN|ANSI
Thread Cutting Part Length THL	0.709"
Thread Diameter Size TDZ	5/16"
Thread Size	5/16" - 24
Thread Standard	UNF
Thread Tolerance Class TCTR	H3
Threads Per Inch Tpi	24
Tool Type	Machine Tap
Trade Name	Shark Taps
Usable Length Lu	1.339"
