Michigan Wholesale Tool Supply

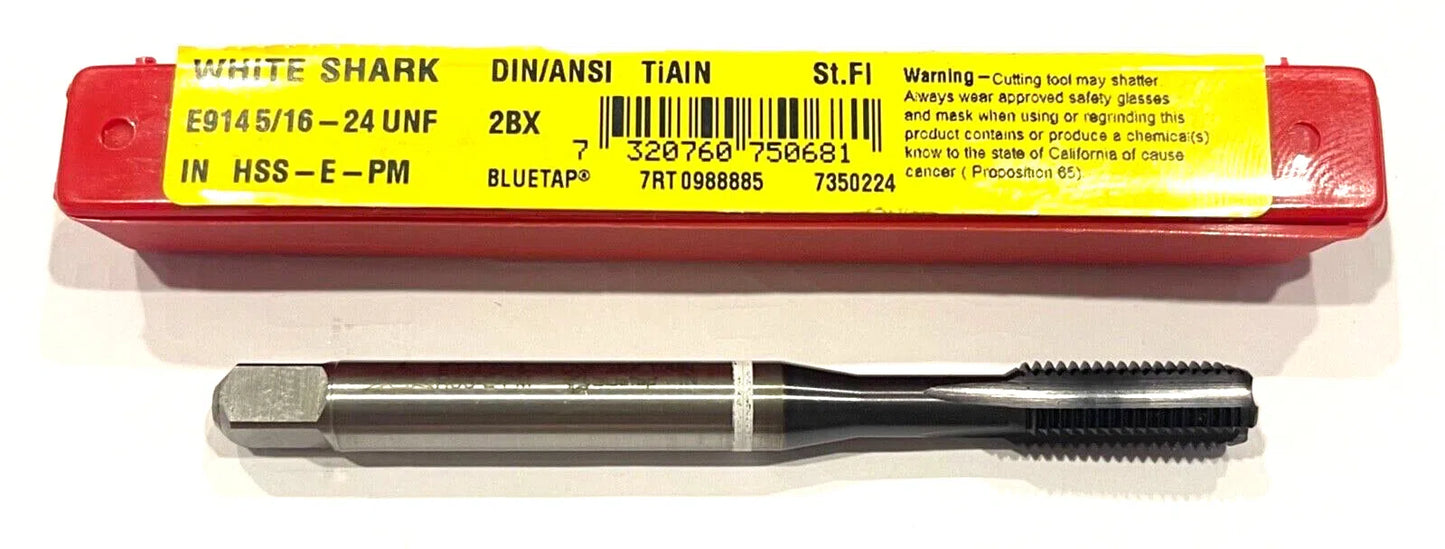

Dormer 5/16-24 HSS-E-PM Machine Tap Semi-Bottoming TiAlN White Ring HP 4FL Tap
Dormer 5/16-24 HSS-E-PM Machine Tap Semi-Bottoming TiAlN White Ring HP 4FL Tap
Regular price
$8.73 USD
Regular price
$0.00 USD
Sale price
$8.73 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 6 left
Couldn't load pickup availability
DORMER
HSS-E-PM HIGH PERFORMANCE MACHINE TAP
| Thread Diameter Size (TDZ) | 5/16″ | Tool Type | Machine Tap |
| Threads per Inch (TPI) | 24 | Coating | TiAlN/Top |
| Thread Standard | UNF | Tapping Prehole Diameter (Pre-hole) | I |
| Overall Length (OAL) | 3.543″ | Flute Length | 0.709″ |
| Thread Cutting Part Length (THL) | 0.709″ | Flute Type | Straight |
| Usable Length (LU) | 1.339″ | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees | Length Group | 2D |
| Applicable Material | Cast Iron | Square Size | 0.236″ |
| Cutting Edge Material | HSS-E-PM | Measurement Type | Fractional |
| Thread Tolerance Class (TCTR) | H5 | Series/List # | E914 |
| Special Feature | White Ring | Thread Size | 5/16″ - 24 |
| Standard | DIN/ANSI |
