Michigan Wholesale Tool Supply

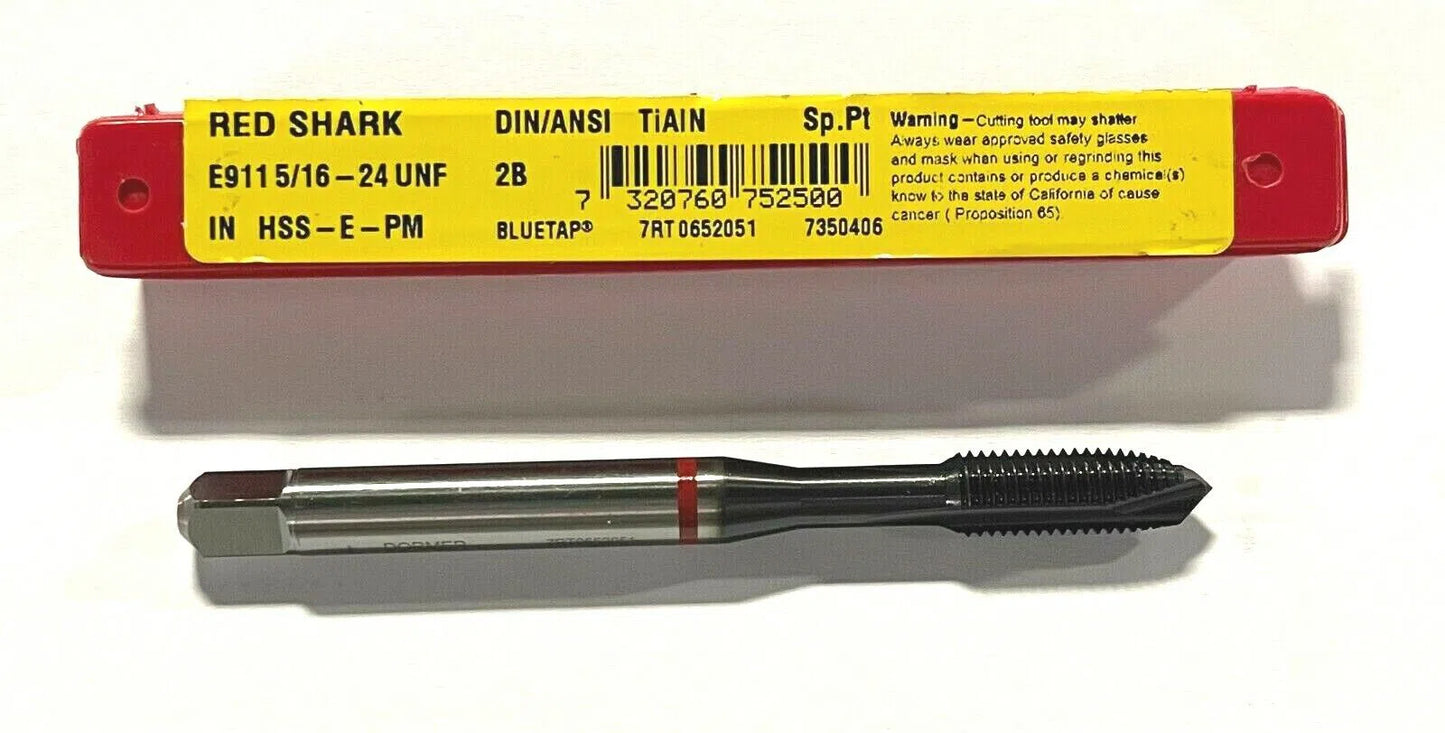

Dormer 5/16-24 Tap HSS-E-PM Spiral Point Plug Tap TiAlN Coating H4 Machine Tap
Dormer 5/16-24 Tap HSS-E-PM Spiral Point Plug Tap TiAlN Coating H4 Machine Tap
Regular price
$6.82 USD
Regular price
$0.00 USD
Sale price
$6.82 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 4 left
Couldn't load pickup availability
DORMER
HSS-E-PM SPIRAL POINT PLUG TAP
| Thread Standard | UNF | Applicable Material | Steel |
| Thread Size | 5/16″ - 24 | Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Thread Diameter Size (TDZ) | 5/16″ | Thread Cutting Part Length (THL) | 0.709″ |
| Threads per Inch (TPI) | 24 | Flute Helix Angle (FHA) | 0 Degrees |
| Thread Tolerance Class (TCTR) | H4 | Tapping Prehole Diameter (Pre-hole) | I |
| Usable Length (LU) | 1.339″ | Flute Length | 0.709″ |
| Overall Length (OAL) | 3.543″ | End Shape | Spiral Point |
| Chamfer | 3.5P-5P | Style | Plug |
| Coating | TiAlN/Top | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS-E PM | Length Group | 2.5xD |
| Standard | DIN ANSI | Measurement Type | Fractional |
| Tool Type | Machine Tap | Series/List # | E911 |
| Special Feature | Red Shark |
