Michigan Wholesale Tool Supply

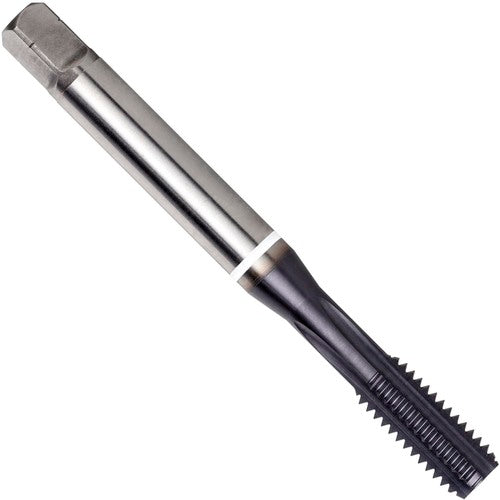

Dormer 5/16"-24 UNF HSS-E-PM Full Bottoming Straight Flute Tap TiAlN White Ring
Dormer 5/16"-24 UNF HSS-E-PM Full Bottoming Straight Flute Tap TiAlN White Ring
Regular price
$11.70 USD
Regular price
$0.00 USD
Sale price
$11.70 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 6 left
Couldn't load pickup availability
| Thread Diameter Size (TDZ) | 5/16″ | Tool Type | Machine Tap |
| Threads per Inch (TPI) | 24 | Coating | TiAlN/Top |
| Thread Standard | UNF | Tapping Prehole Diameter (Pre-hole) | I |
| Overall Length (OAL) | 3.543″ | Flute Length | 0.787″ |
| Thread Cutting Part Length (THL) | 0.787″ | Flute Type | Straight |
| Usable Length (LU) | 1.339″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | Axial Coolant |
| Flute Helix Angle (FHA) | 0 Degrees | Length Group | 2.5D |
| Applicable Material | Cast Iron | Square Size | 0.236″ |
| Cutting Edge Material | HSS-E-PM | Measurement Type | Fractional |
| Thread Tolerance Class (TCTR) | H5 | Series/List # | E915 |
| Special Feature | White Ring | Thread Size | 5/16″ - 24 |
| Standard | DIN/ANSI |
