Michigan Wholesale Tool Supply

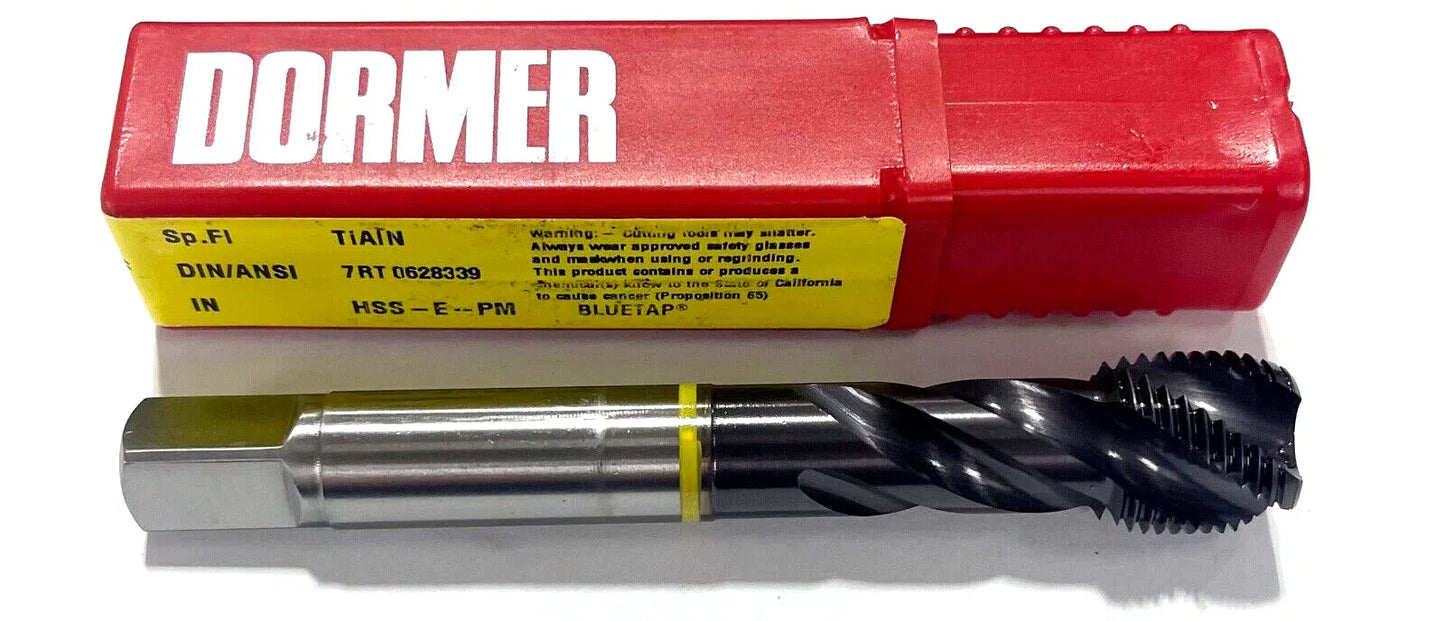

Dormer 5/8-18 HSS-E-PM Spiral Flute Semi-Bottoming Tap TiAlN 4FL H5 Yellow Ring
Dormer 5/8-18 HSS-E-PM Spiral Flute Semi-Bottoming Tap TiAlN 4FL H5 Yellow Ring
Regular price
$33.12 USD
Regular price
$0.00 USD
Sale price
$33.12 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 4 left
Couldn't load pickup availability
DORMER
HSS-E-PM SPIRAL FLUTE TAP
| Thread Diameter Size (TDZ) | 5/8″ | Standard | | DIN | ANSI | |
| Threads per Inch (TPI) | 18 | Tool Type | Machine Tap |
| Thread Standard | | UNF | | Chamfer | 2P-3P |
| Overall Length (OAL) | 3.937″ | Coating | TiAlN |
| Thread Cutting Part Length (THL) | 0.591″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Style | Semi-Bottoming |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 40 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | | Length Group | 2xD |
| Cutting Edge Material | HSSE-PM | Square Size | 0.358″ |
| Thread Tolerance Class (TCTR) | | H5 | | Measurement Type | Fractional |
| Special Feature | Yellow Shark | Series/List # | E908 |
