Michigan Wholesale Tool Supply

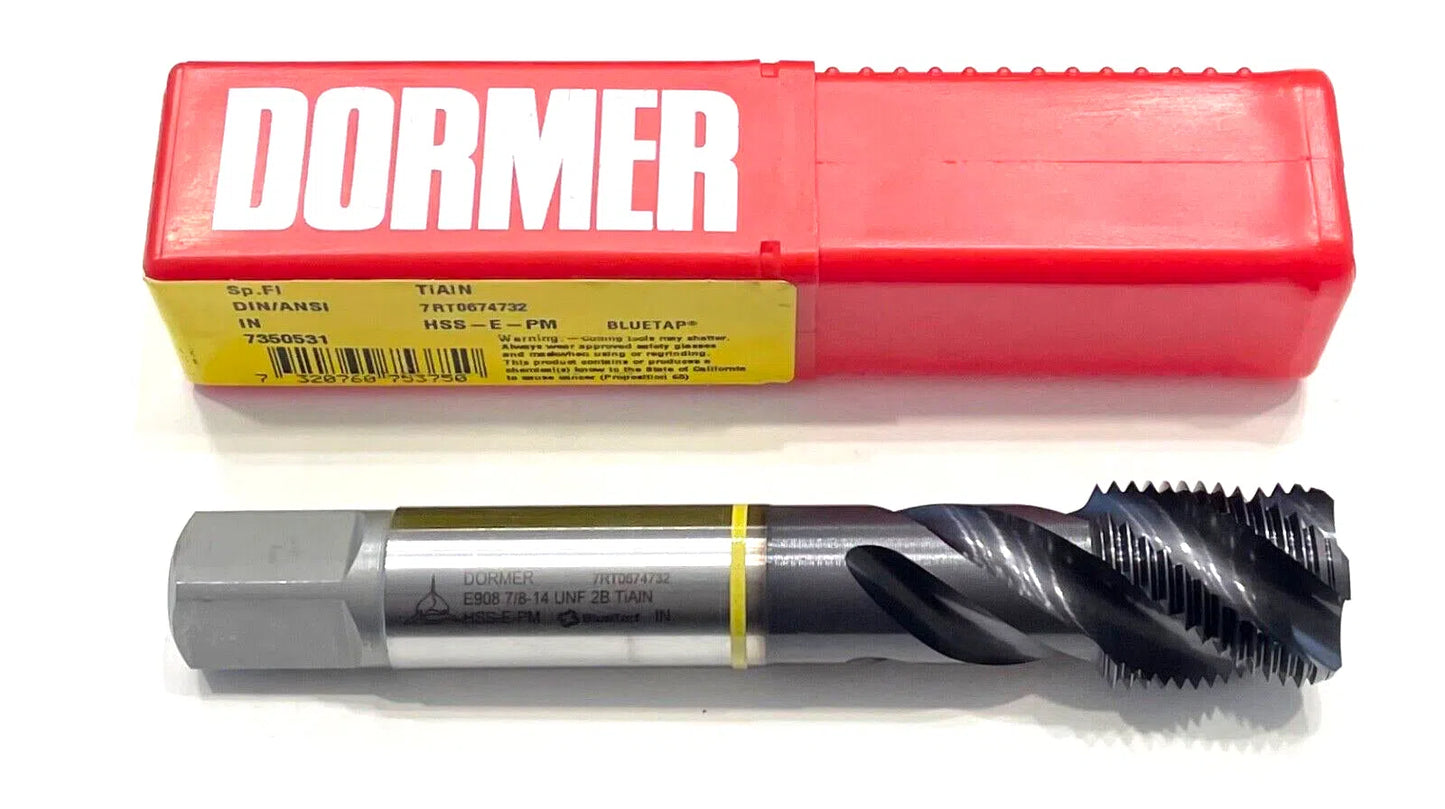

Dormer 7/8"-14 HSS-E-PM Spiral Flute Tap Semi-Bottoming TiAlN Yellow Ring 4FL
Dormer 7/8"-14 HSS-E-PM Spiral Flute Tap Semi-Bottoming TiAlN Yellow Ring 4FL
Regular price
$57.87 USD
Regular price
$0.00 USD
Sale price
$57.87 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 5 left
Couldn't load pickup availability
DORMER
HSS-E-PM SEMI-BOTTOMING SPIRAL FLUTE TAP
| Thread Diameter Size (TDZ) | 7/8″ | Standard | | DIN | ANSI | |
| Threads per Inch (TPI) | 14 | Tool Type | Machine Tap |
| Thread Standard | | UNF | | Chamfer | 2P-3P |
| Overall Length (OAL) | 4.921″ | Coating | TiAlN |
| Thread Cutting Part Length (THL) | 0.984″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.697″ | Style | Semi-Bottoming |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 40 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | | Length Group | 2xD |
| Cutting Edge Material | HSSE-PM | Square Size | 0.52″ |
| Thread Tolerance Class (TCTR) | | H6 | | Measurement Type | Fractional |
| Special Feature | Yellow Shark | Series/List # | E908 |
