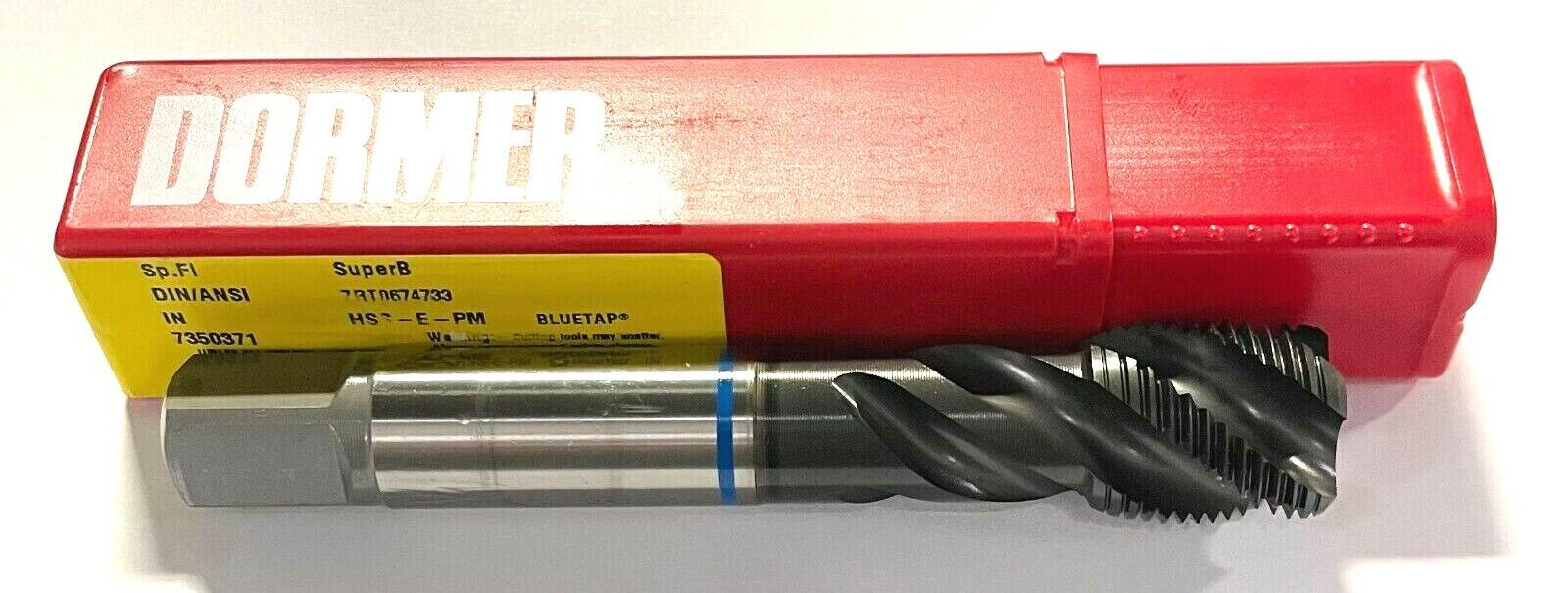

Dormer 7/8"-14 Tap HSS-E-PM Machine Tap Semi Bottoming H4 4FL Super B Coating

PRODUCT DESCRIPTION

DORMER

7/8-14 MACHINE TAP - SEMI BOTTOMING SPIRAL FLUTE

Thread Diameter Size (TDZ)	7/8″	Tool Type	Machine Tap
Threads per Inch (TPI)	14	Chamfer	‎2P-3P
Thread Standard	UNF	Coating	Super-B
Overall Length (OAL)	4.921″	Flute Type	Spiral
Thread Cutting Part Length (THL)	0.984″	Style	Semi-Bottoming
Connection Diameter Machine Side (DCONMS)	0.697″	Cutting Direction (HAND)	Right Hand
Flute Count (NOF)	4	Coolant Supply Property (CSP)	External
Flute Helix Angle (FHA)	40 Degrees	Length Group	2.5xD
Applicable Material	Stainless Steel	Square Size	0.52″
Cutting Edge Material	HSS-E PM	Measurement Type	Fractional
Thread Tolerance Class (TCTR)	H4	Series/List #	E912
Special Feature	Blue Shark	Thread Size	‎7/8″ - 14
Standard	DIN ANSI	Standard Pack Size	1
