Michigan Wholesale Tool Supply

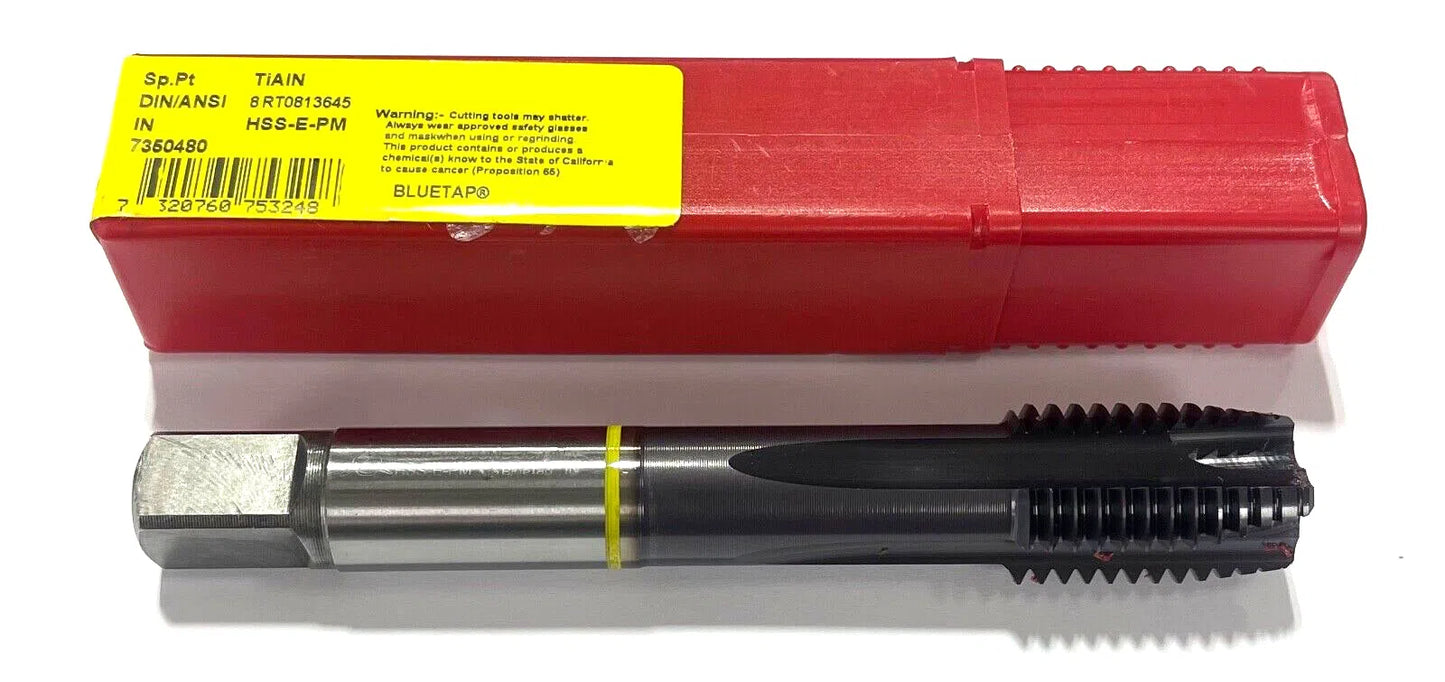

Dormer 7/8-9 HSS-E-PM Spiral Point Plug Tap TiAlN H6 Yellow Ring 4 Flute
Dormer 7/8-9 HSS-E-PM Spiral Point Plug Tap TiAlN H6 Yellow Ring 4 Flute
Regular price
$44.77 USD
Regular price
$0.00 USD
Sale price
$44.77 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
DORMER
HSS-E-PM SPIRAL POINT PLUG TAP
| Thread Standard | | UNC | | Applicable Material | | Steel | |
| Thread Size | 7/8″ - 9 | Connection Diameter Machine Side (DCONMS) | 0.697″ |
| Thread Diameter Size (TDZ) | 7/8″ | Thread Cutting Part Length (THL) | 1.339″ |
| Threads per Inch (TPI) | 9 | Flute Helix Angle (FHA) | 0 Degrees |
| Thread Tolerance Class (TCTR) | | H6 | | Tapping Prehole Diameter (Pre-hole) | 49/64″ |
| Overall Length (OAL) | 5.512″ | Flute Length | 1.339″ |
| Chamfer | 3.5P-5P | End Shape | Spiral Point |
| Coating | TiAlN | Style | Plug |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSSE PM | Coolant Supply Property (CSP) | External |
| Standard | | DIN | ANSI | | Length Group | 2.5xD |
| Tool Type | Machine Tap | Measurement Type | Fractional |
| Special Feature | Yellow Shark | Series/List # | E809 |
