Michigan Wholesale Tool Supply

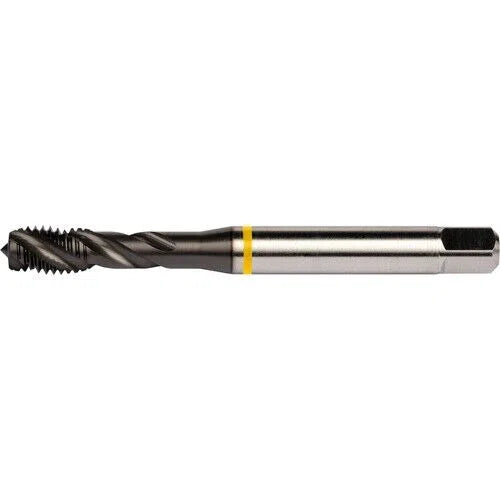

Dormer 8-32 HSSE-PM Semi-Bottoming Tap Spiral Flute Yellow Ring TiAlN Coating
Dormer 8-32 HSSE-PM Semi-Bottoming Tap Spiral Flute Yellow Ring TiAlN Coating
Regular price
$10.55 USD
Regular price
$0.00 USD
Sale price
$10.55 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 5 left
Couldn't load pickup availability
DORMER
HSSE-PM SPIRAL FLUTE SEMI BOTTOMOING TAP
| Thread Diameter Size (TDZ) | #8 | Standard | | DIN | ANSI | |
| Threads per Inch (TPI) | 32 | Tool Type | Machine Tap |
| Thread Standard | | UNC | | Chamfer | 2P-3P |
| Overall Length (OAL) | 2.48″ | Coating | TiAlN |
| Thread Cutting Part Length (THL) | 0.276″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.168″ | Style | Semi-Bottoming |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 40 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | | Length Group | 2xD |
| Cutting Edge Material | HSSE-PM | Square Size | 0.129″ |
| Thread Tolerance Class (TCTR) | | 2B | | Measurement Type | Machine Screw |
| Special Feature | Yellow Shark | Series/List # | E808 |
