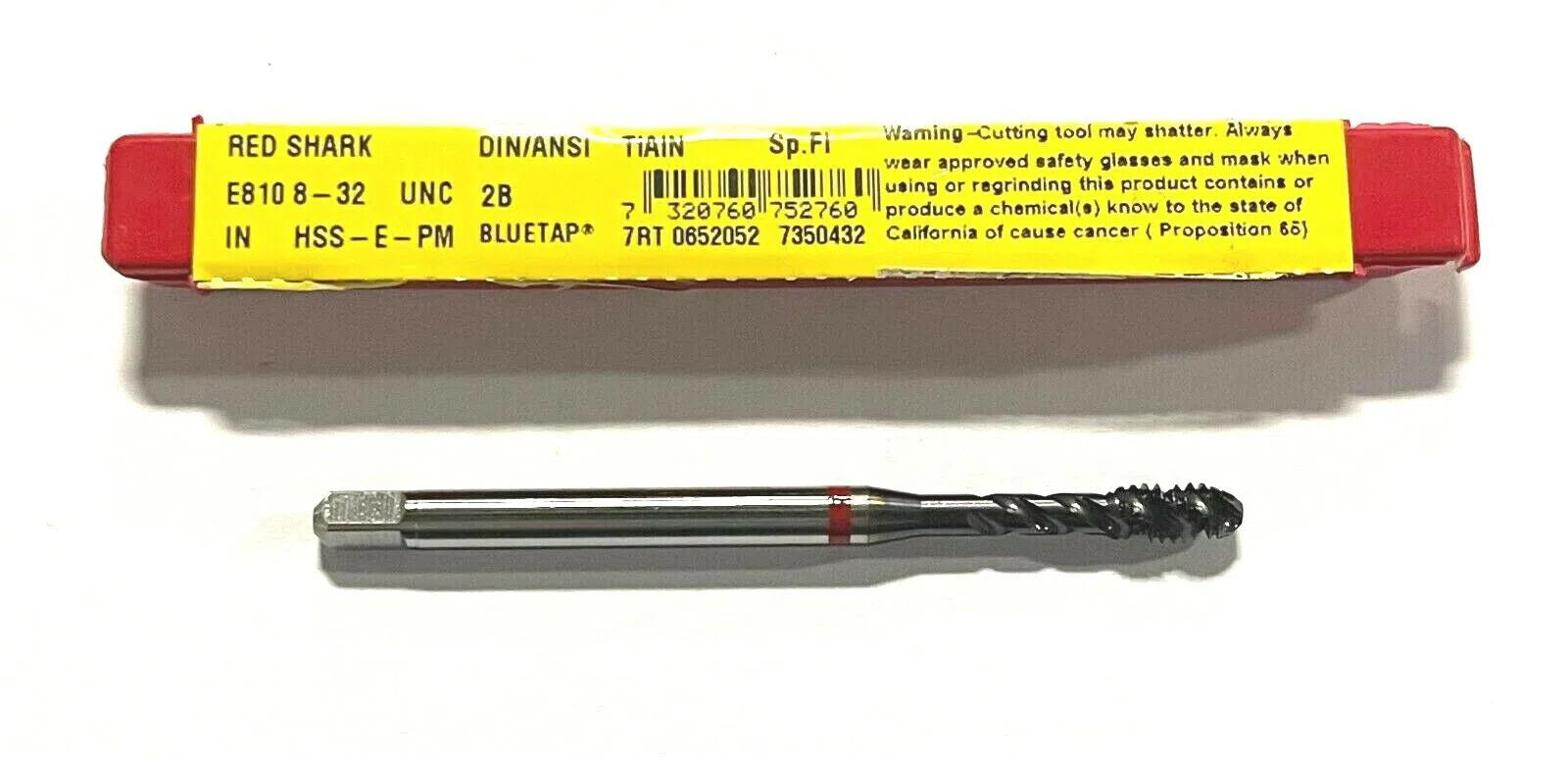

Dormer 8-32 Tap HSS-E-PM Semi Bottoming Spiral Flute TiAlN Coated 2B Red Shark
Dormer 8-32 Tap HSS-E-PM Semi Bottoming Spiral Flute TiAlN Coated 2B Red Shark
Regular price
$7.24 USD
Regular price
$0.00 USD
Sale price
$7.24 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
DORMER
SEMI BOTTOMING SPIRAL FLUTE MACHINE TAP
| Thread Diameter Size (TDZ) | #8 | Standard | DIN ANSI |
| Threads per Inch (TPI) | 32 | Tool Type | Machine Tap |
| Thread Standard | UNC | Chamfer | 2P-3P |
| Overall Length (OAL) | 2.48″ | Coating | TiAlN/Top |
| Thread Cutting Part Length (THL) | 0.276″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.168″ | Style | Semi-Bottoming |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | Steel | Length Group | 2.5xD |
| Cutting Edge Material | HSS-E PM | Square Size | 0.129″ |
| Thread Tolerance Class (TCTR) | 2B | Measurement Type | Machine Screw |
| Special Feature | Red Shark |
