Michigan Wholesale Tool Supply

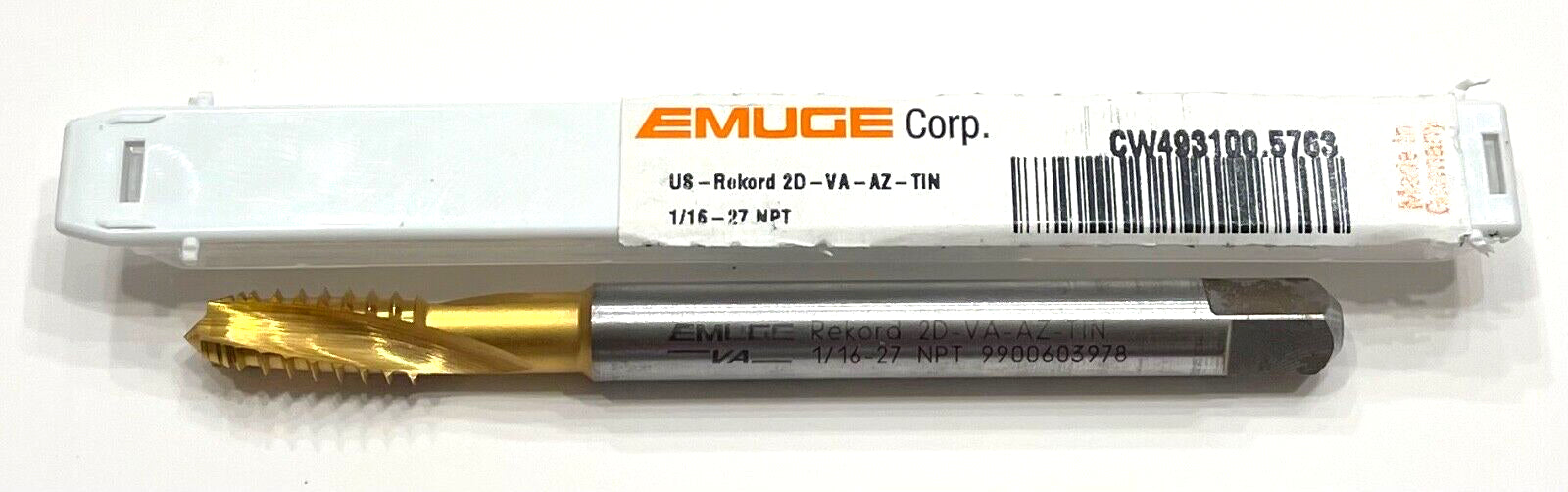

EMUGE 1/16"-27 NPT HSSE Pipe Tap Tin Coating Spiral Flute 3FL CW493100.5763
EMUGE 1/16"-27 NPT HSSE Pipe Tap Tin Coating Spiral Flute 3FL CW493100.5763
Regular price
$17.83 USD
Regular price
$0.00 USD
Sale price
$17.83 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.
Low stock: 4 left
Couldn't load pickup availability
EMUGE
HSSE SPIRAL FLUTE PIPE TAP
| Tool Type | Pipe Tap | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 1/16″ | Applicable Material | | Steel | Stainless Steel | |
| Threads per Inch (TPI) | 27 | Chamfer | 2P-3P |
| Thread Standard | NPT | Coating | TiN |
| Flute Helix Angle (FHA) | 15 Degrees | Cutting Edge Material | HSSE |
| Overall Length (OAL) | 3.543″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 0.69″ | Standard | ANSI |
| Connection Diameter Machine Side (DCONMS) | 0.312″ | Thread Size | 1/16″ - 27 |
| Flute Type | Spiral | Application | Through Hole | Blind Hole |
| Coolant Supply Property (CSP) | External |
Product Features
Remarks
• Rekord D-VA extra length, slow spiral NPT/NPTF skip tooth pipe tap for through hole applications in stainless steel and steel materials.
• Longer tool life and more consistent thread quality.
