Michigan Wholesale Tool Supply

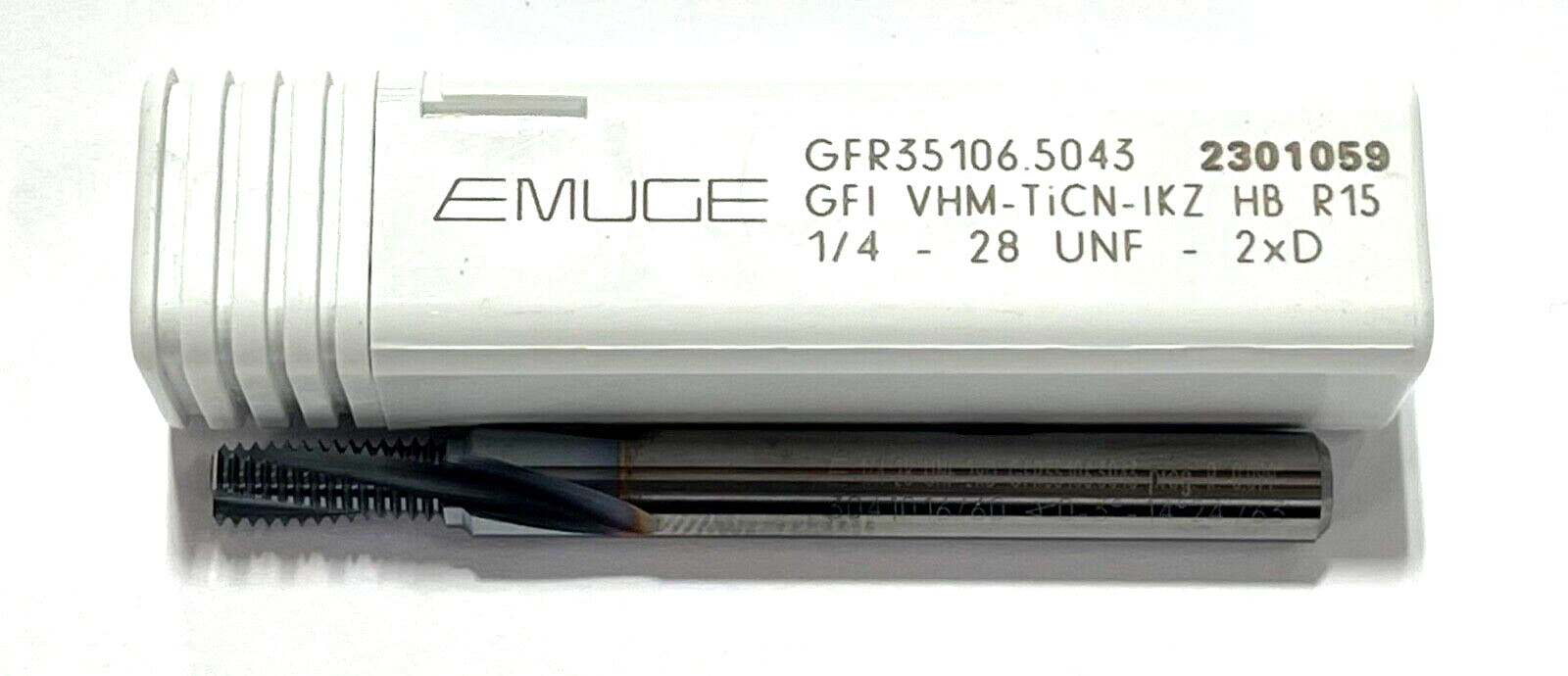

EMUGE 1/4-28 Solid Carbide Thread Mill TiCN Coating 3 Flute Coolant Thru
EMUGE 1/4-28 Solid Carbide Thread Mill TiCN Coating 3 Flute Coolant Thru
Regular price
$41.13 USD
Regular price
$0.00 USD
Sale price
$41.13 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.
Low stock: 6 left
Couldn't load pickup availability
EMUGE
SOLID CARBIDE THREAD MILL
| Thread Size | 1/4″ | Coating | TiCN |
| Threads per Inch (TPI) | 28 | Applicable Material | | General Purpose | |
| Thread Standard | | UNF | | Flute Helix Angle (FHA) | 15 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.203″ | Flute Type | Spiral |
| Overall Length (OAL) | 2-1/2″ | Length Group | 2xD |
| Flute Count (NOF) | 3 | Tool Type | Thread Mill |
| Coolant Supply Property (CSP) | Coolant Thru | Depth of Cut Maximum (APMX) | 0.644″ |
| Shank Type | HB | Cutting Direction (HAND) | | Left Hand | Right Hand | |
