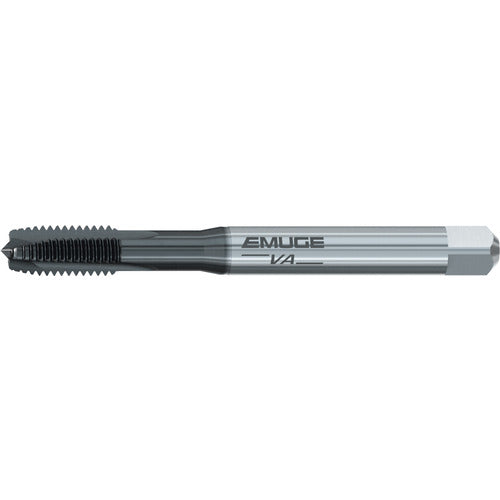

Emuge 1/4"-28 UNF 2B HSSE Spiral Point Tap GLT-1 Coating 3 Flute

PRODUCT DESCRIPTION

Thread Standard	UNF	Tool Type	Rekord B-VA
Thread Size	1/4″ - 28	Applicable Material	| Steel | Stainless Steel |
Thread Diameter Size (TDZ)	1/4″	Application	Blind Hole
Threads per Inch (TPI)	28	Connection Diameter Machine Side (DCONMS)	0.255″
Thread Tolerance Class (TCTR)	2B	Flute Helix Angle (FHA)	0 Degrees
Overall Length (OAL)	3.15″	Style	Spiral Point
Chamfer	4P-5P	Cutting Direction (HAND)	Right Hand
Coating	GLT-1	Coolant Supply Property (CSP)	External
Cutting Edge Material	HSS-E	Series/List #	U20C300
Standard	DIN | ANSI
