Michigan Wholesale Tool Supply

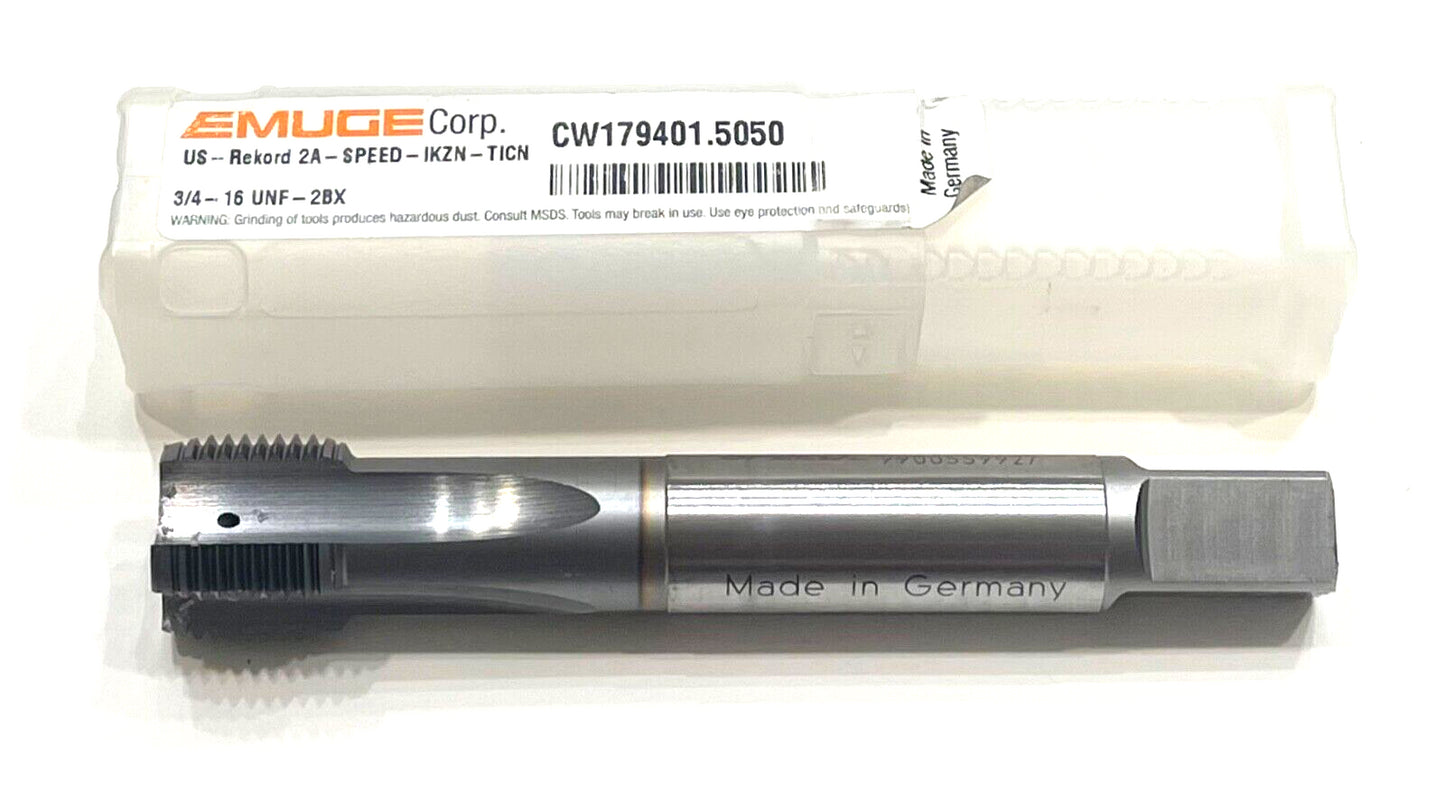

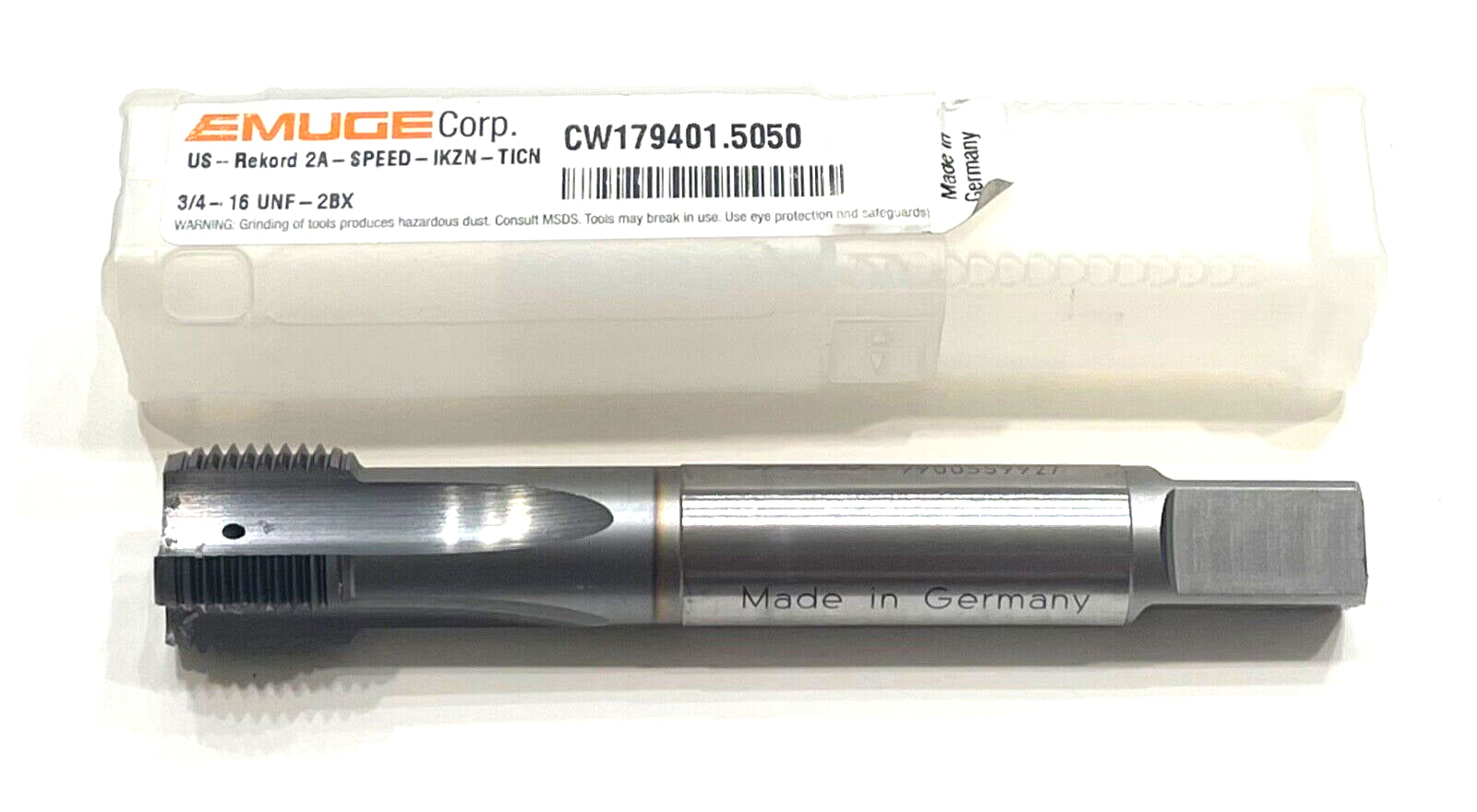

EMUGE 3/4"-16 UNF HSSE Straight Flute Tap TiCN Coating 2BX 4 Flute Coolant Thru
EMUGE 3/4"-16 UNF HSSE Straight Flute Tap TiCN Coating 2BX 4 Flute Coolant Thru
Regular price
$56.42 USD
Regular price
$0.00 USD
Sale price
$56.42 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.
Low stock: 2 left
Couldn't load pickup availability
EMUGE
HSSE STRAIGHT FLUTE TAP
| Thread Diameter Size (TDZ) | 3/4″ | Standard | | DIN | ANSI | |
| Threads per Inch (TPI) | 16 | Tool Type | Rekord A-Speed |
| Thread Standard | | UNF | | Chamfer | 2P-3P |
| Overall Length (OAL) | 4.331″ | Coating | TiCN |
| Thread Cutting Part Length (THL) | 0.98″ | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 0.59″ | End Shape | Chamfer |
| Flute Helix Angle (FHA) | 0 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | Through Hole | Blind Hole | Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | | Cast Iron | | Measurement Type | Fractional |
| Cutting Edge Material | HSSE | Thread Size | 3/4″ - 16 |
| Thread Tolerance Class (TCTR) | | 2BX | |
