115 in stock

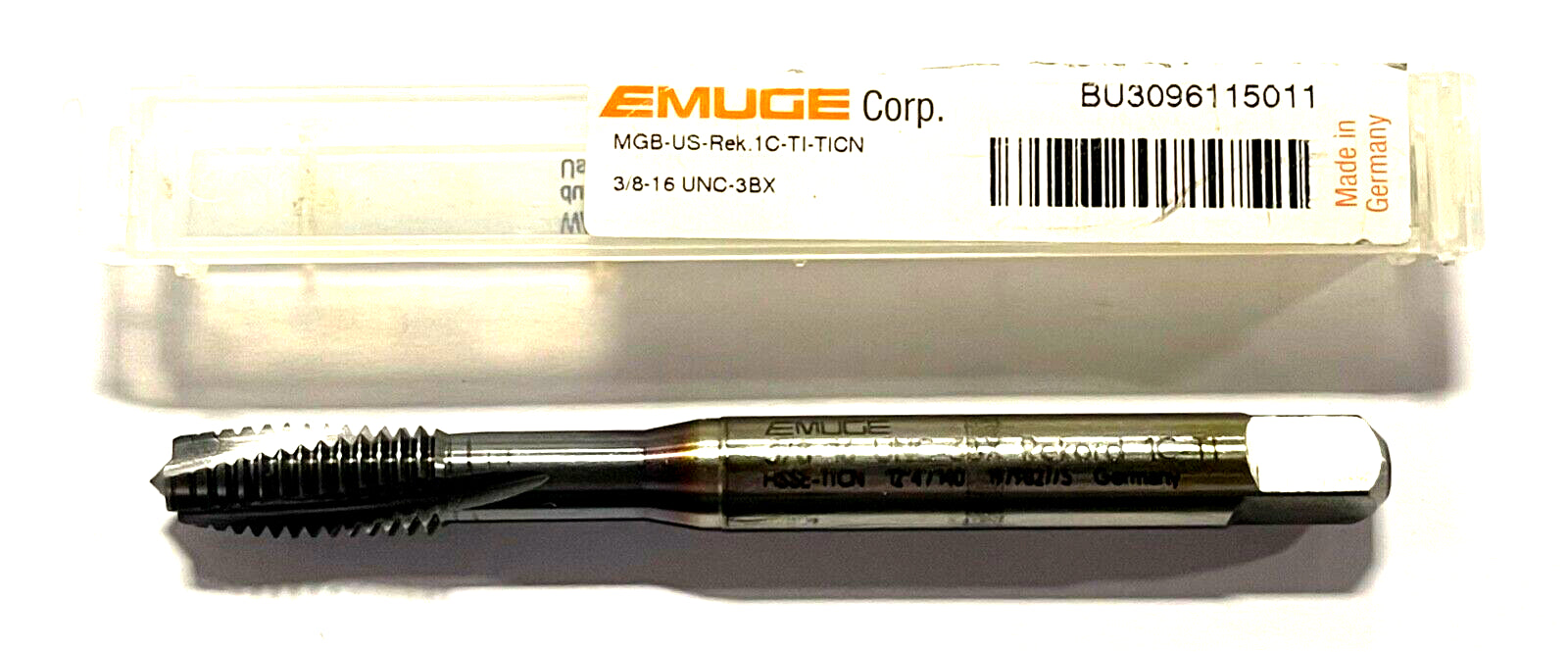

EMUGE 3/8-16 Tap HSSE Spiral Flute Tap TiCN Coating 3BX 3 Flute 4P-5P

PRODUCT DESCRIPTION

EMUGE

HSSE SPIRAL FLUTE TAP

Thread Diameter Size (TDZ)	3/8″	Standard	DIN | ANSI
Threads per Inch (TPI)	16	Tool Type	Rekord C-TI
Thread Standard	UNC	Chamfer	‎4P-5P
Overall Length (OAL)	3.937″	Coating	TiCN
Thread Cutting Part Length (THL)	0.87″	Flute Type	Spiral
Connection Diameter Machine Side (DCONMS)	0.381″	End Shape	Chamfer
Flute Helix Angle (FHA)	15 Degrees	Cutting Direction (HAND)	Left Hand
Applicable Material	Super-Alloys / Titanium	Coolant Supply Property (CSP)	External
Cutting Edge Material	HSSE	Measurement Type	Fractional
Thread Tolerance Class (TCTR)	3BX
