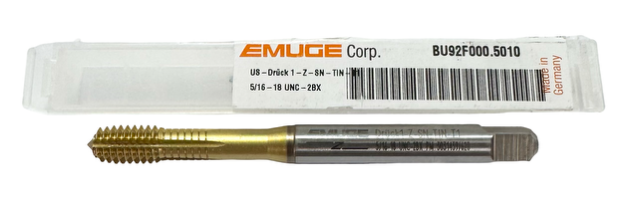

Emuge 5/16"-18 HSSE Thread Forming Tap UNC-2BX Tin Coated

PRODUCT DESCRIPTION

Description	Forming Tap; 5/16" - 18 ; 3.543" OAL x 0.318" Shank Dia. ; HSSE ; TiN ; 2BX ; Series BU92F000
Brand	Emuge-Franken
Chamfer	2P-3P
Coating	TiN
Connection Diameter Machine Side Dconms	0.318"
Coolant Supply Property CSP	External
Cutting Direction Hand	Right-Hand
Cutting Edge Material	HSSE
End Shape	Chamfer
Measurement Type	Fractional
Overall Length Oal	3.543"
Tap Standard	DIN|ANSI
Thread Cutting Part Length THL	0.79"
Thread Diameter Size TDZ	5/16"
Thread Size	5/16" - 18
Thread Standard	UNC
Thread Tolerance Class TCTR	2BX
Threads Per Inch Tpi	18
Tool Type	Forming Tap
Trade Name	EMUGE - STEEL
