Michigan Wholesale Tool Supply

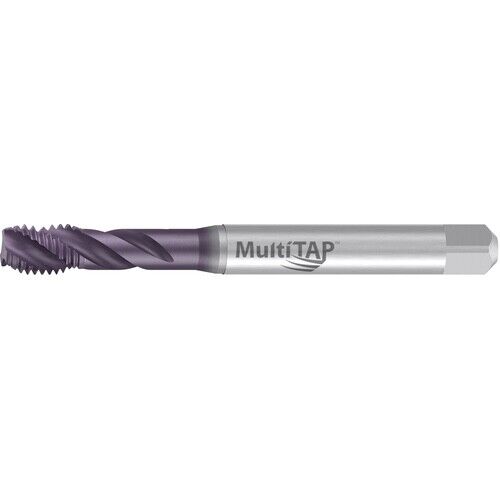

EMUGE 5-44 UNF HSSE Spiral Flute Tap TiCN Coating 3 Flute 2B 3B BU5393005038
EMUGE 5-44 UNF HSSE Spiral Flute Tap TiCN Coating 3 Flute 2B 3B BU5393005038
Regular price
$6.91 USD
Regular price
$0.00 USD
Sale price
$6.91 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.
Low stock: 6 left
Couldn't load pickup availability
EMUGE
HSSE SPIRAL FLUTE TAP
| Thread Diameter Size (TDZ) | #5 | Thread Tolerance Class (TCTR) | | 2B | 3B | |
| Threads per Inch (TPI) | 44 | Standard | | DIN | ANSI | |
| Thread Standard | | UNF | | Tool Type | MultiTAP |
| Overall Length (OAL) | 2.205″ | Chamfer | 2P-3P |
| Thread Cutting Part Length (THL) | 0.433″ | Coating | TiCN |
| Usable Length (LU) | 0.709″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 35 Degrees | Measurement Type | Machine Screw |
| Applicable Material | | General Purpose | | Series/List # | BU539300 |
| Cutting Edge Material | HSSE | Application | Blind Hole |
Product Features
Remarks
• MultiTAP will cut a wide range of material including carbon steel, steel alloys, stainless steel, aluminum and copper.
• Longer tool life and more consistent thread quality.
• All purpose design is well suited to the job shop, short run tapping environment.
• Premium HSSE cobalt base material.
