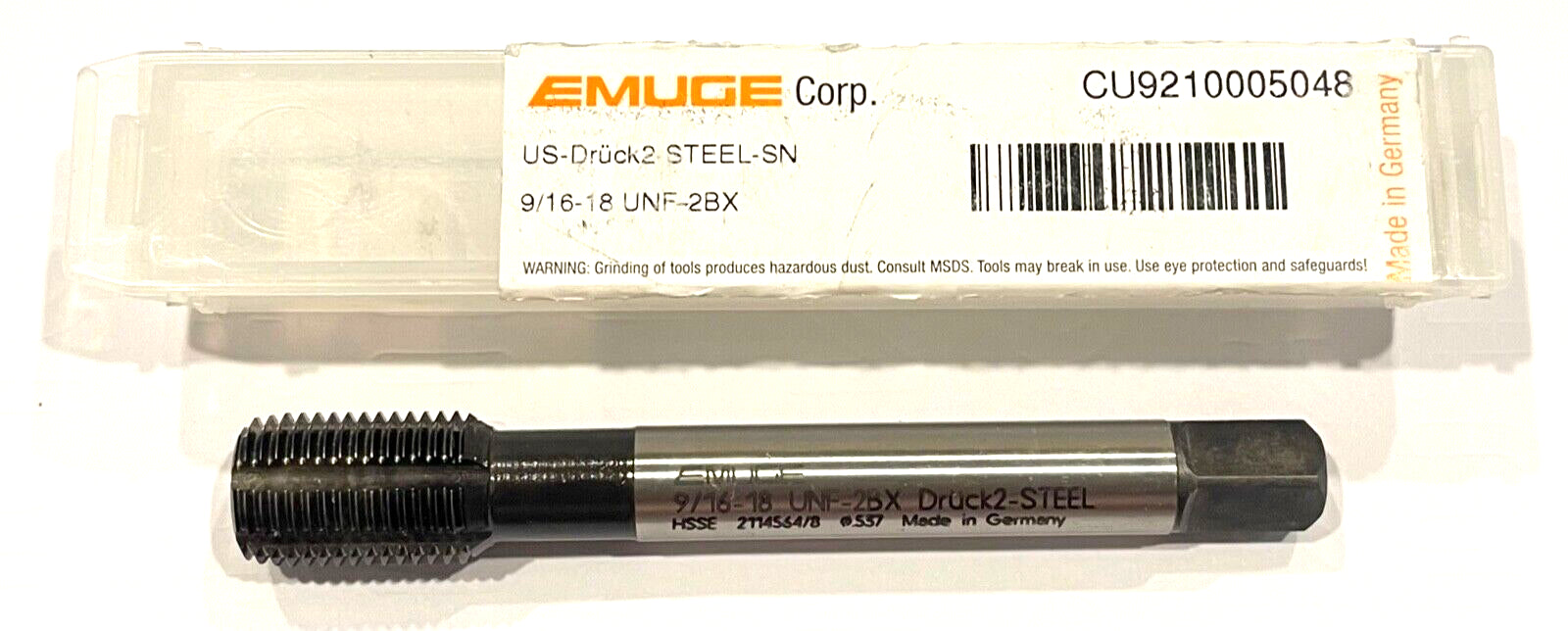

EMUGE 9/16-18 HSSE Thread Forming Tap UNF-2BX Roll Form Druck Tap
EMUGE 9/16-18 HSSE Thread Forming Tap UNF-2BX Roll Form Druck Tap
Regular price
$17.69 USD
Regular price
$0.00 USD
Sale price
$17.69 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.
Low stock: 4 left
Couldn't load pickup availability
EMUGE
HSSE THREAD FORMING TAP
| Thread Diameter Size (TDZ) | 9/16″ | Standard | DIN | ANSI |
| Threads per Inch (TPI) | 18 | Tool Type | Roll Form - Druck |
| Thread Standard | UNF | Chamfer | 2P-3P |
| Overall Length (OAL) | 3.937″ | Coating | NT |
| Connection Diameter Machine Side (DCONMS) | 0.429″ | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | Universal Materials | Measurement Type | Inch |
| Cutting Edge Material | HSSE | Series/List # | U921000 |
| Thread Tolerance Class (TCTR) | 2BX |
