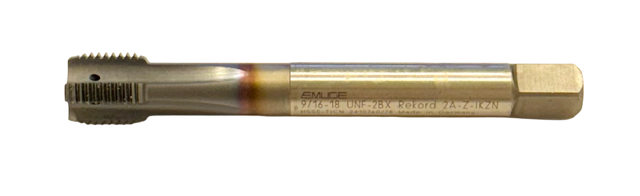

Emuge 9/16"-18 UNF-2BX HSSE Straight Flute Tap TiCN 4 Flute Coolant Thru

PRODUCT DESCRIPTION

Description	Straight Flute Tap; 9/16" - 18 ; 3.937" OAL ; HSSE ; TiCN ; 2BX ; Series CU219401
Brand	Emuge-Franken
Chamfer	2P-3P
Coating	TiCN
Connection Diameter Machine Side Dconms	0.429"
Coolant Supply Property CSP	Coolant Thru
Cutting Direction Hand	Right-Hand
Cutting Edge Material	HSSE
End Shape	Chamfer
Flute Helix Angle Fha	0 Degrees
Flute Type	Straight
Measurement Type	Fractional
Overall Length Oal	3.937"
Standard	DIN|ANSI
Thread Cutting Part Length THL	0.87"
Thread Diameter Size TDZ	9/16"
Thread Size	9/16" - 18
Thread Standard	UNF
Thread Tolerance Class TCTR	2BX
Threads Per Inch Tpi	18
Tool Type	Rekord A-Z
Trade Name	EMUGE - Z
