Low stock: 2 left

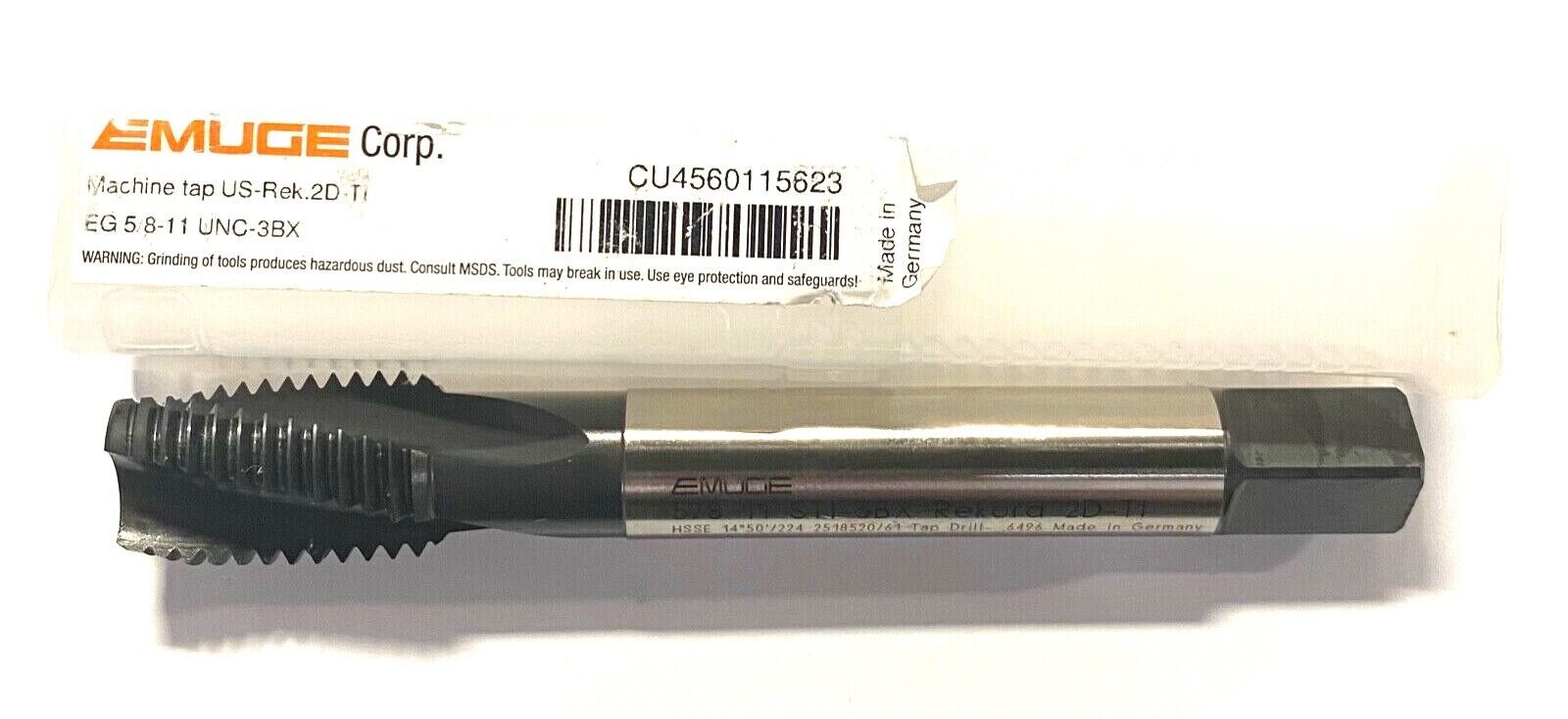

EMUGE Cobalt 5/8-11 STI Tap UNC-3B REK.2D-TI Spiral Flute Machine Tap 3 Flute

PRODUCT DESCRIPTION

EMUGE

COBALT STI SPIRAL FLUTE TAP

Tool Type	STI Tap	Coating	Black Oxide|Nitride
Thread Diameter Size (TDZ)	5/8″	Coolant Supply Property (CSP)	External
Thread Tolerance Class (TCTR)	3BX	Cutting Direction (HAND)	Right Hand
Thread Standard	NC	Flute Helix Angle (FHA)	CW|15 Degrees
Thread Cutting Part Length (THL)	1.18″	Flute Type	Spiral
Threads per Inch (TPI)	11	Measurement Type	Fractional
Overall Length (OAL)	4.921″	Connection Diameter Machine Side (DCONMS)	0.59″
Cutting Edge Material	HSSCo	Standard	DIN|ANSI
End Shape	Point|Chamfer	Thread Size	‎5/8″ - 11
Chamfer	‎2P-3P
