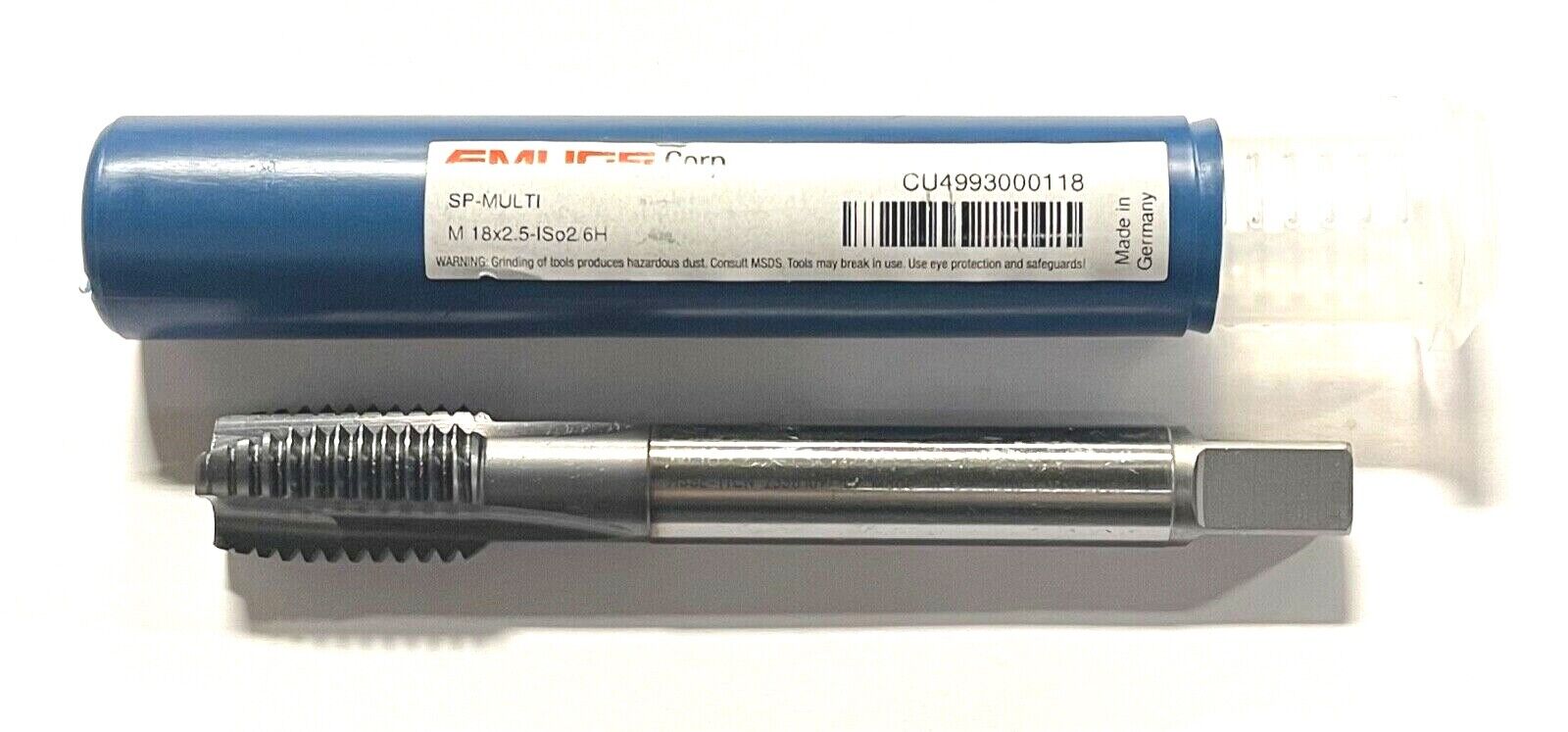

EMUGE HSS-E M18 x 2.5mm Spiral Point Tap TiCN Coating 3 Flute 6H Multi-Tap
EMUGE HSS-E M18 x 2.5mm Spiral Point Tap TiCN Coating 3 Flute 6H Multi-Tap
Regular price
$14.19 USD
Regular price
$0.00 USD
Sale price
$14.19 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.
13 in stock
Couldn't load pickup availability
EMUGE
HSS-E SPIRAL POINT TAP
| Thread Standard | Metric | Standard | DIN | ANSI |
| Thread Size | M18 × 2.5 | Tool Type | MultiTAP |
| Thread Diameter Size (TDZ) | M18 | Applicable Material | Universal Materials |
| Thread Pitch (TP) | 2.5 mm | Connection Diameter Machine Side (DCONMS) | 0.542″ |
| Thread Tolerance Class (TCTR) | ISO 2 | 6H | Thread Cutting Part Length (THL) | 1.18″ |
| Overall Length (OAL) | 4.921″ | Flute Helix Angle (FHA) | 0 Degrees |
| Chamfer | 4P-5P | Style | Spiral Point |
| Coating | TiCN | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS-E | Measurement Type | Metric |
