Michigan Wholesale Tool Supply

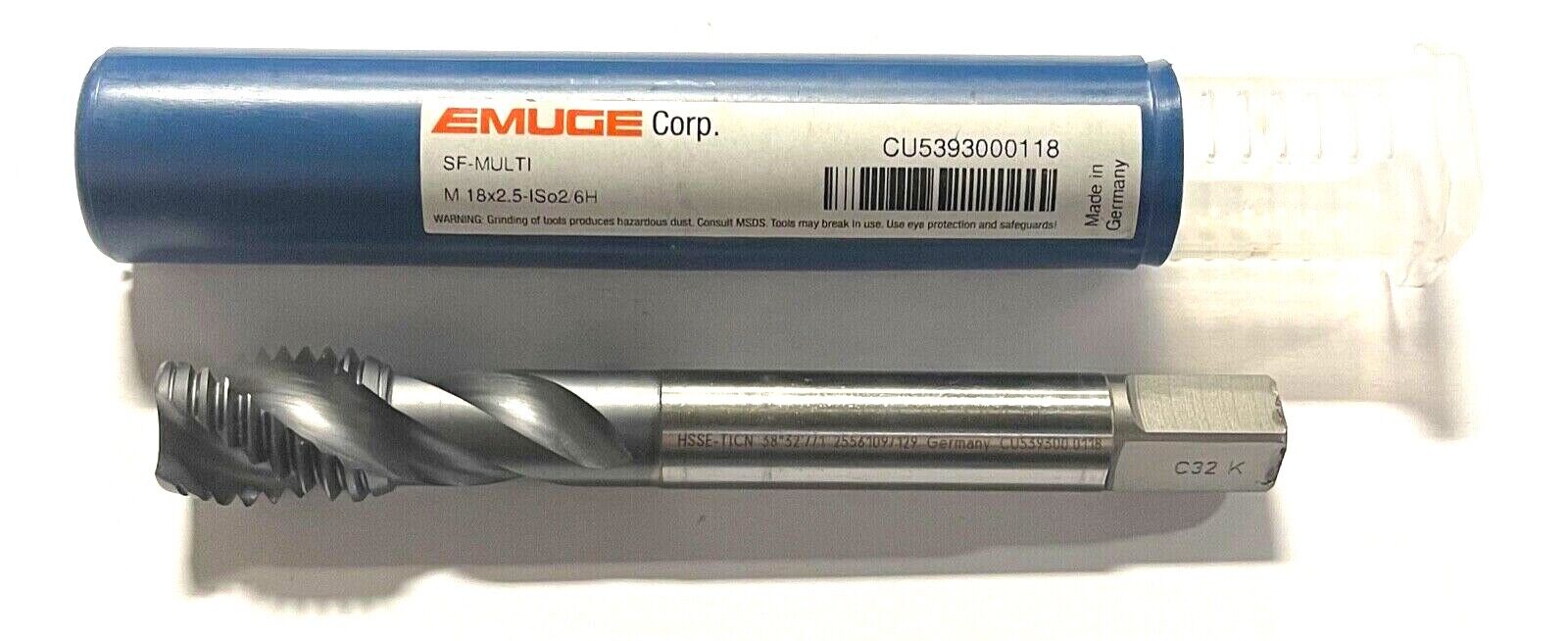

EMUGE M18 x 2.5 HSSE Tap Semi Bottoming TiCN Coating 6H 3 Flute Tap
EMUGE M18 x 2.5 HSSE Tap Semi Bottoming TiCN Coating 6H 3 Flute Tap
Regular price
$18.56 USD
Regular price
$0.00 USD
Sale price
$18.56 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.
14 in stock
Couldn't load pickup availability
EMUGE
HSSE SPIRAL FLUTE MULTI-TAP
| Thread Diameter Size (TDZ) | M18 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 2.5 mm | Standard | DIN | ANSI |
| Thread Standard | Metric | Tool Type | MultiTAP |
| Overall Length (OAL) | 110 mm | Chamfer | 2P-3P |
| Thread Cutting Part Length (THL) | 30 mm | Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 0.542″ | Flute Type | Spiral |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 35 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | Universal Materials | Measurement Type | Metric |
| Cutting Edge Material | HSSE |
