Michigan Wholesale Tool Supply

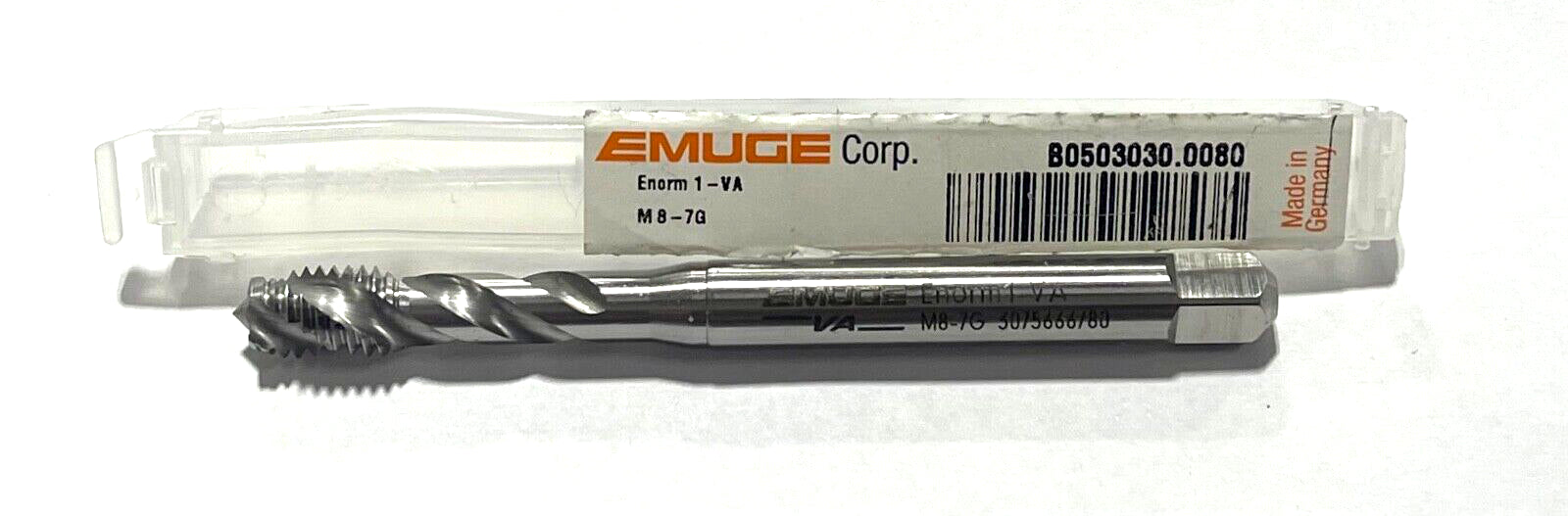

EMUGE M8 x 7G HSSE Spiral Flute Tap 3 Flute H9 B0503030.0080
EMUGE M8 x 7G HSSE Spiral Flute Tap 3 Flute H9 B0503030.0080
Regular price
$11.28 USD
Regular price
$0.00 USD
Sale price
$11.28 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.
Low stock: 3 left
Couldn't load pickup availability
EMUGE
HSSE SPIRAL FLUTE TAP
| Chamfer | 2 -3 P |
| Chamfer Form | C |
| Class | Oversize |
| Pitch | 1.25 |
| Size | M 8 |
| Thread Limit | 7G |
| Thread Standard | M |
| Applicable Material | Alloyed Steel & Stainless Steel |
| Application | Through Hole |
| Coolant Fed | No |
| Coating/Finish | Bright |
| Material | HSSE |
| Type | Rekord B-VA |
| Length Group | DIN Length |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 35° |
| Shank Diameter (mm) | 8 mm |
| Dimension Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Overall Length (mm) | 90 mm |
| Thread Length (mm) | 12.5 mm |
| Flute Direction | Right Hand |
