Michigan Wholesale Tool Supply

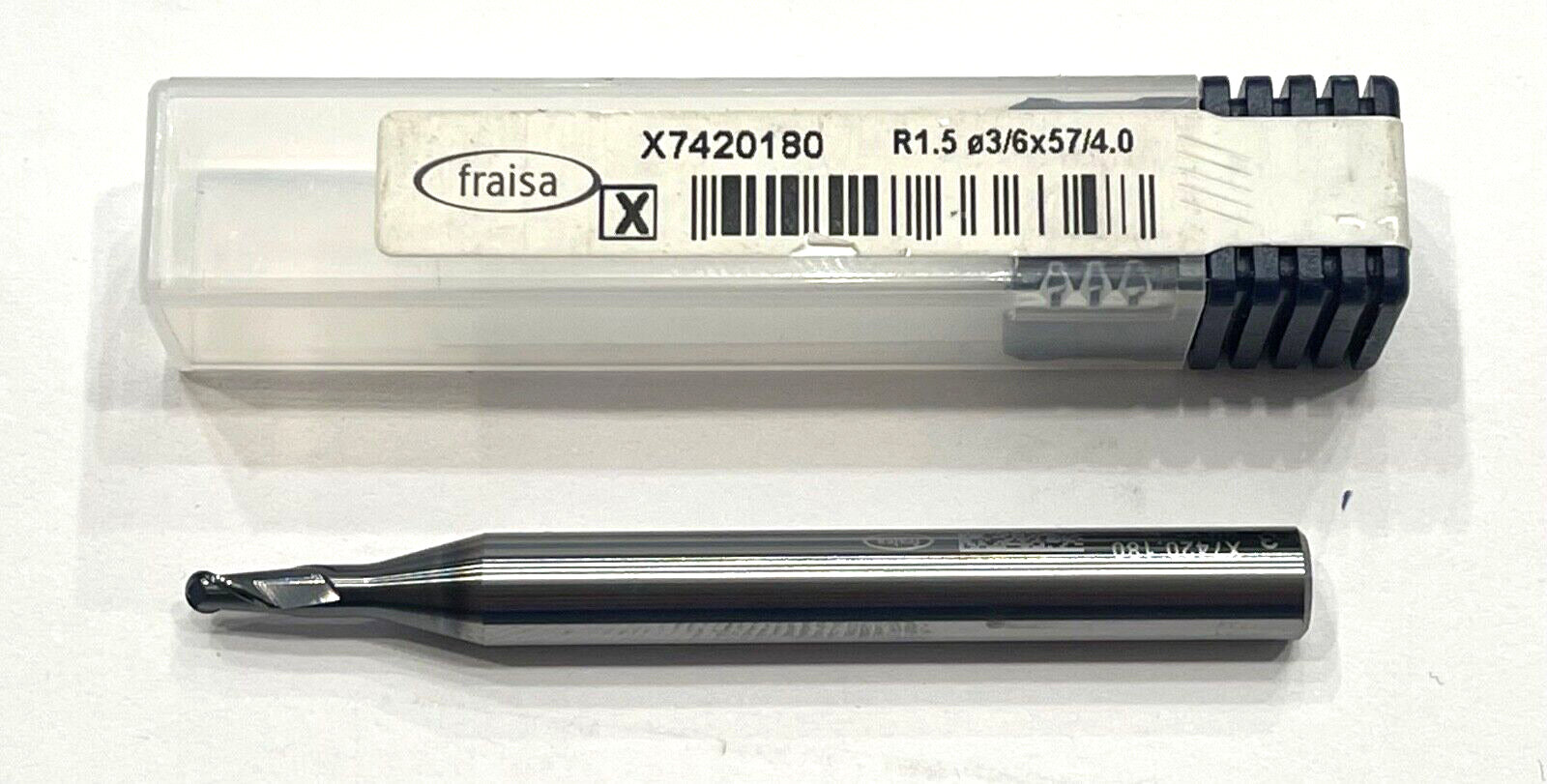

Fraisa 3mm Carbide Ball Nose End Mill 3xD 2 Flute X-AL Coating 1.5mm Radius
Fraisa 3mm Carbide Ball Nose End Mill 3xD 2 Flute X-AL Coating 1.5mm Radius
Regular price
$13.46 USD
Regular price
$0.00 USD
Sale price
$13.46 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.
Low stock: 2 left
Couldn't load pickup availability
FRAISA
SOLID CARBIDE BALL NOSE END MILL
| Cutting Diameter (DC) | 3 mm | Neck Length (LN) | 9 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Grade | XT |
| Depth of Cut Maximum (APMX) | 4 mm | Tool Type | Ballnose Endmill |
| Overall Length (OAL) | 57 mm | Length Group | 3xD |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | X-AL | Flute Type | Spiral |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Shank Type | Round | Series/List # | Sphero-XR |
| Applicable Material | Steel | Hard Materials | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 1.5 mm | Center Cutting | Yes |
| Neck Diameter (DN) | 2.8 mm | Single / Double End | Single End |
