Michigan Wholesale Tool Supply

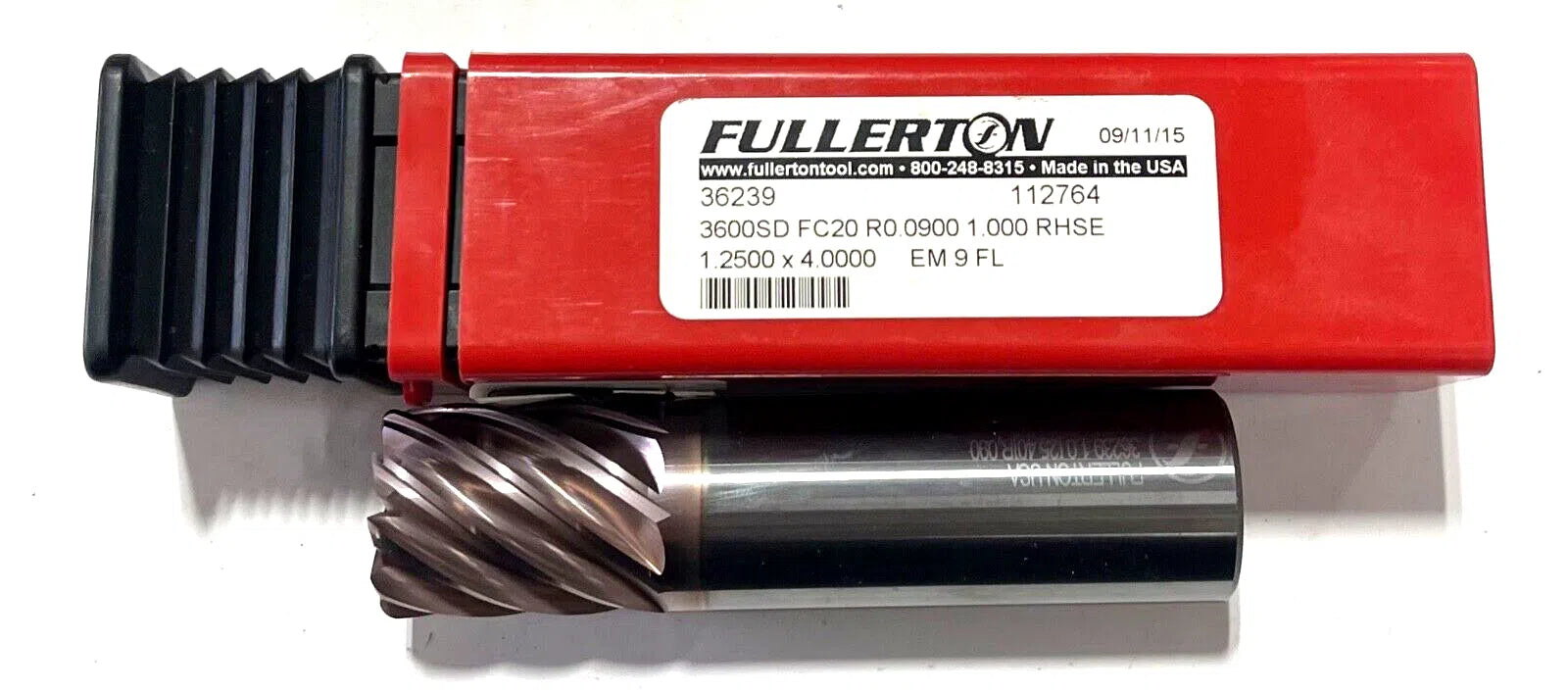

Fullerton 1" Carbide End Mill 9 Flute FC20 Coating Variable Helix .0900" Radius
Fullerton 1" Carbide End Mill 9 Flute FC20 Coating Variable Helix .0900" Radius
Regular price
$63.70 USD
Regular price
$0.00 USD
Sale price
$63.70 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
FULLERTON
USA MADE
SOLID CARBIDE END MILL
Features
- The 3600 Force is a high performance end mill available with 5, 7, or 9-flutes
- It produces excellent surface finishes and chip control and its optimized geometry allows for high feed rates in stainless steels, super alloys, and titanium
- The 3600 Force is stocked with FC-20 coating
Product Specifications
| Cutting Diameter (Decimal Inch) | 1" |
| Cutting Diameter (mm) | 25.40mm |
| Cutting Diameter (Inch) | 1" |
| Cutting Flute Length (Decimal Inch) | 1.2500" |
| Cutting Flute Length (mm) | 31.75mm |
| Cutting Flute Length (Inch) | 1-1/4" |
| Shank Diameter (Decimal Inch) | 1" |
| Shank Diameter (mm) | 25.40mm |
| Shank Diameter (Inch) | 1" |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (mm) | 101.60mm |
| Overall Length (Inch) | 4" |
| Coating/Finish | FC20 |
| Metric/Inch | Inch |
| Number of Flutes | 9 |
| Helix Angle (Degrees) | Variable |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Point End Type | Corner Radius |
| End Type Character Designation | R |
| Radius (Decimal Inch) | 0.0900" |
| Radius (mm) | 2.29mm |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Standard |
| Length Designator | SD |
