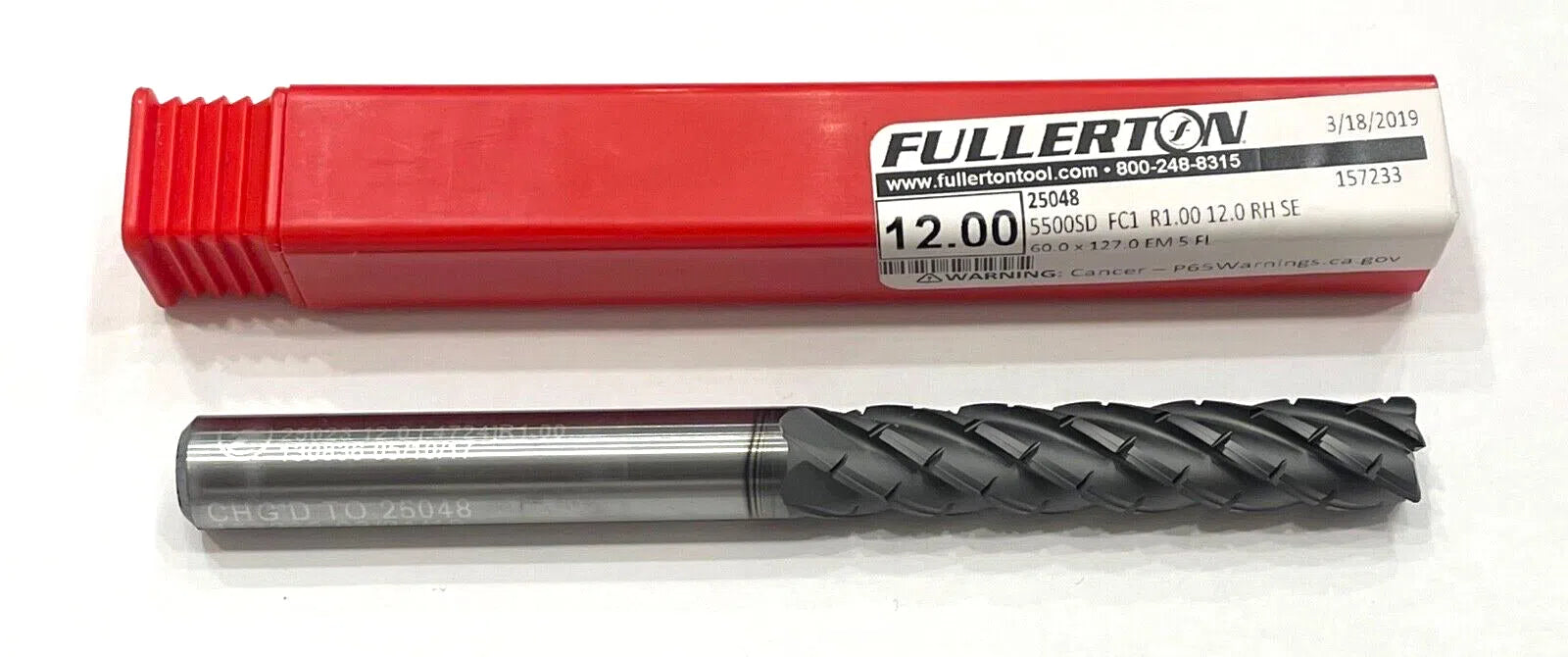

Fullerton 12mm Carbide End Mill Long Length 5FL 1mm Radius FC1 5500 Matrix USA
Fullerton 12mm Carbide End Mill Long Length 5FL 1mm Radius FC1 5500 Matrix USA
Regular price
$32.39 USD
Regular price
$0.00 USD
Sale price
$32.39 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
FULLERTON
USA MADE
SOLID CARBIDE END MILL WITH CHIP BREAKER FLUTES
Features
- The 5500 MATRX is a 5-flute, high performance end mill that allows for ultimate material removal rates in carbon composites, fiberglass, fiber reinforced materials, plastics, and green ceramics
- Its high shear and low cutting forces provide a clean edge with minimal material delamination or tearing of fibers
- The 5500 MATRX is stocked uncoated and with FC-1 coating
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4724" |
| Cutting Flute Length (Decimal Inch) | 2.3622" |
| Shank Diameter (Decimal Inch) | 0.4724" |
| Overall Length (Decimal Inch) | 5" |
| Mill Diameter (mm) | 12mm |
| Cutting Flute Length (mm) | 60mm |
| Shank Diameter (mm) | 12mm |
| Overall Length (mm) | 127mm |
| Radius (mm) | 1mm |
| Finish/Coating | FC1 |
| Number of Flutes | 5 |
| Helix Angle | 35 Degree |
| Flute Spiral Direction | Right Hand Spiral |
| Cutting Direction | Right Hand Cutting |
| Coolant Thorugh (Yes/No) | No |
