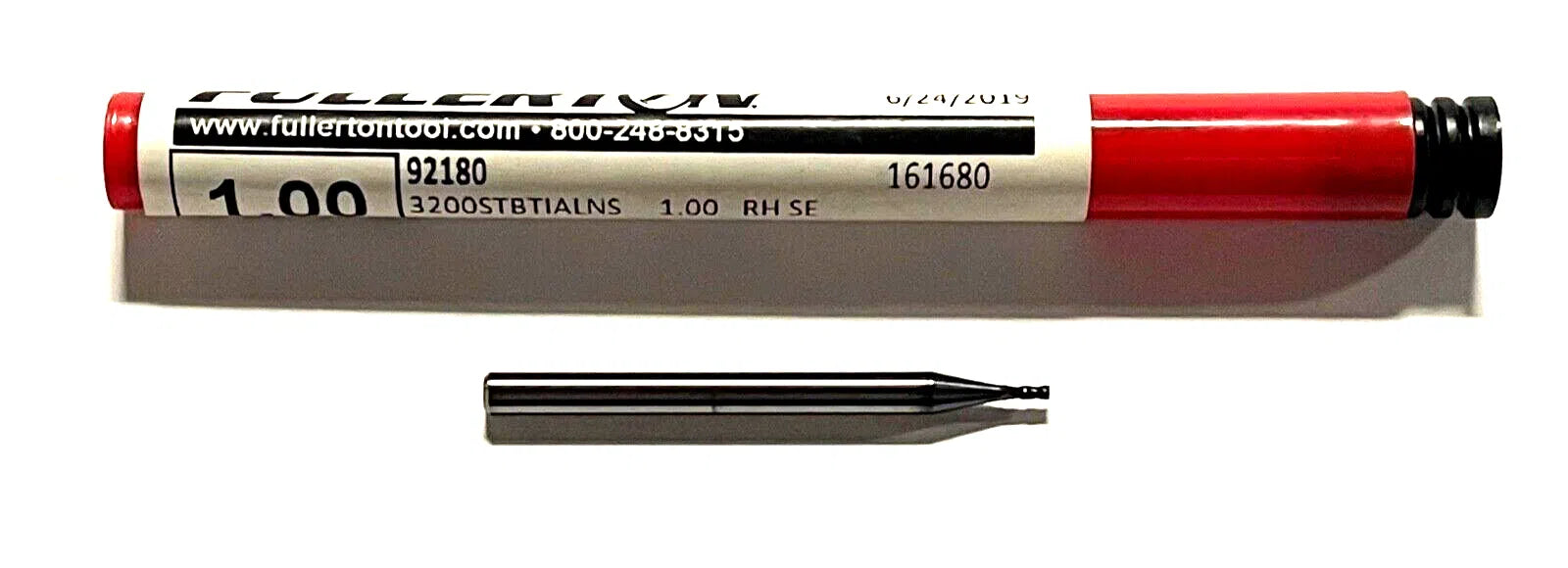

Fullerton 1mm Carbide Ball Nose End Mill TiAlN Coated 4 Flute 30° Helix USA Made
Fullerton 1mm Carbide Ball Nose End Mill TiAlN Coated 4 Flute 30° Helix USA Made
Regular price
$5.09 USD
Regular price
$0.00 USD
Sale price
$5.09 USD
Unit price
/
per
Shipping calculated at checkout.
63 in stock
Couldn't load pickup availability
FULLERTON
USA MADE
SOLID CARBIDE BALL NOSE END MILL
| Cutting Diameter (DC) | 1 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 2-1/2 mm | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 38 mm | Length Group | Short|Stub |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TIALN | Decimal Equivalent | 0.0394″ |
| Flute Count (NOF) | 4 | Series/List # | 3200 |
| Flute Helix Angle (FHA) | 30 Degrees |
