Michigan Wholesale Tool Supply

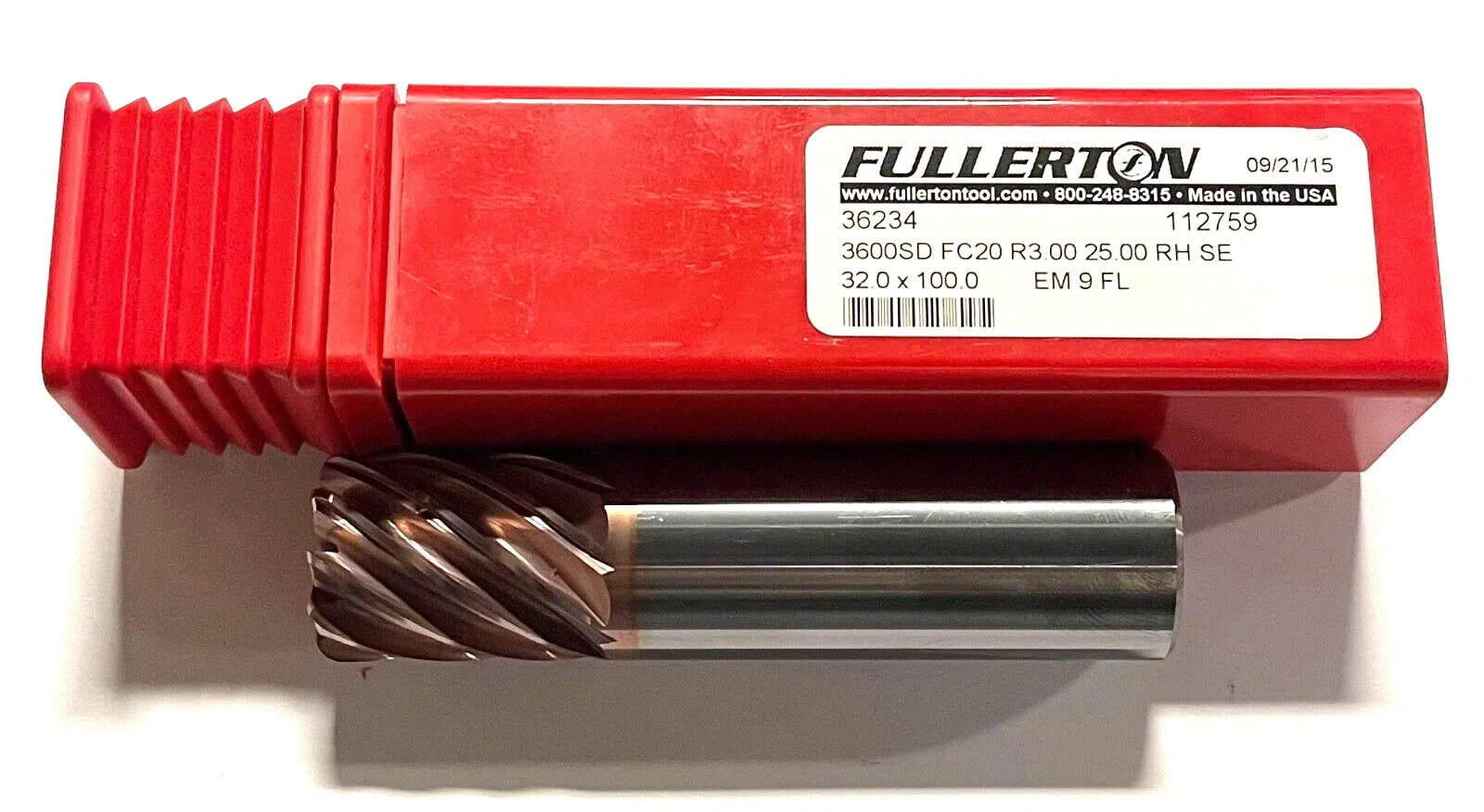

Fullerton 25mm Carbide End Mill 9 Flute FC20 Coating Variable Helix USA Made
Fullerton 25mm Carbide End Mill 9 Flute FC20 Coating Variable Helix USA Made
Regular price
$64.06 USD
Regular price
$0.00 USD
Sale price
$64.06 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
FULLERTON
USA MADE
SOLID CARBIDE END MILL
| Cutting Diameter (DC) | 25 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Usable Length (LU) | 32 mm |
| Depth of Cut Maximum (APMX) | 32 mm | Corner Radius (RE) | 3 mm |
| Overall Length (OAL) | 100 mm | Tool Type | Single-End |
| Cutting Edge Material | Carbide | Length Group | Regular |
| Coating | FC20 | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 9 | Decimal Equivalent | 0.9843″ |
| Flute Helix Angle (FHA) | Variable | Series/List # | 3600 |
| Shank Type | Round |
