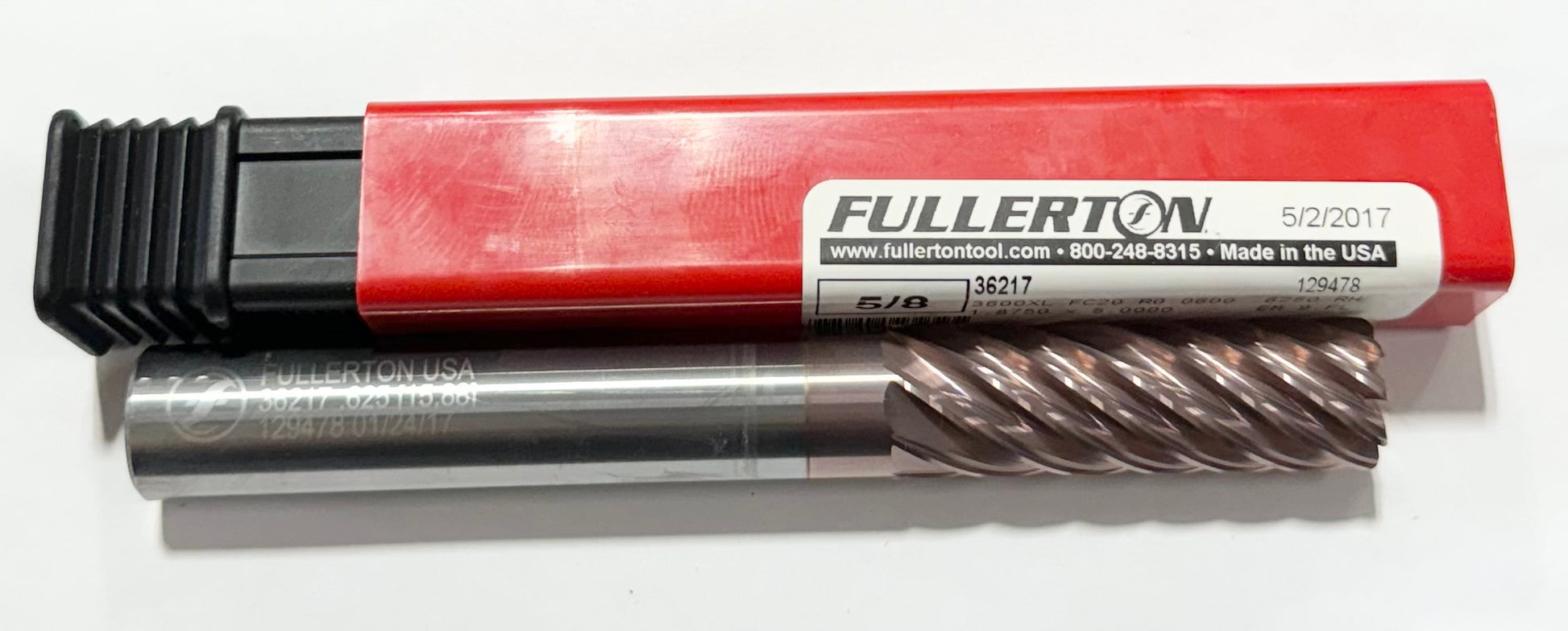

Fullerton 5/8" Carbide End Mill Extra Long 9FL Variable Helix FC20 .060" Radius
Fullerton 5/8" Carbide End Mill Extra Long 9FL Variable Helix FC20 .060" Radius
Regular price
$54.99 USD
Regular price
$0.00 USD
Sale price
$54.99 USD
Unit price
/
per
Low stock: 1 left
Fullerton 5/8" Carbide End Mill Extra Long 9FL Variable Helix FC20 .060" Radius
PRODUCT DESCRIPTION
Cutting Diameter (Decimal Inch) | 0.6250" |
Cutting Diameter (mm) | 15.88mm |
Cutting Diameter (Inch) | 5/8" |
Cutting Flute Length (Decimal Inch) | 1.8750" |
Cutting Flute Length (mm) | 47.63mm |
Cutting Flute Length (Inch) | 1-7/8" |
Shank Diameter (Decimal Inch) | 0.6250" |
Shank Diameter (mm) | 15.88mm |
Shank Diameter (Inch) | 5/8" |
Overall Length (Decimal Inch) | 5.0000" |
Overall Length (mm) | 127.00mm |
Overall Length (Inch) | 5" |
Coating/Finish | FC20 |
Metric/Inch | Inch |
Number of Flutes | 9 |
Helix Angle (Degrees) | Variable |
Flute Spiral Direction | Right Hand |
Direction of Cut | Right Hand |
Point End Type | Corner Radius |
End Type Character Designation | R |
Radius (Decimal Inch) | 0.0600" |
Radius (mm) | 1.52mm |
End Type | Single End |
Coolant Through | Non Coolant Through |
Weldon Flat | No |
Length | Extra Long |
Length Designator | XL |
