Fullerton 5/8" Carbide End Mill Variable Helix 9 FL FC Coated .060" Radius

Fullerton 5/8" Carbide End Mill Variable Helix 9 FL FC Coated .060" Radius

Regular price $37.99 USD
Regular price $0.00 USD Sale price $37.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 3 left



Fullerton 5/8" Carbide End Mill Variable Helix 9 FL FC Coated .060" Radius

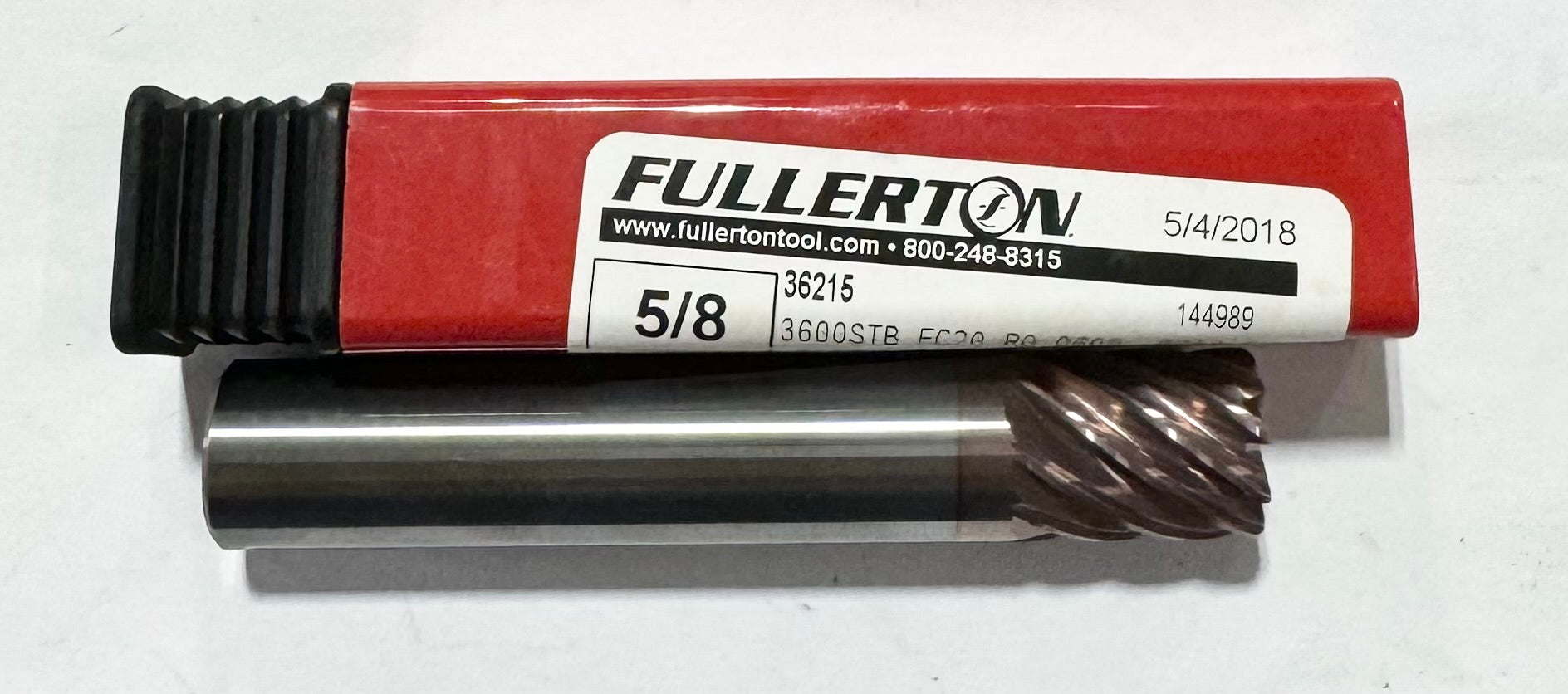

main image

PRODUCT DESCRIPTION

Cutting Diameter (Decimal Inch) 0.6250"
Cutting Diameter (mm) 15.88mm
Cutting Diameter (Inch) 5/8"
Cutting Flute Length (Decimal Inch) 0.7500"
Cutting Flute Length (mm) 19.05mm
Cutting Flute Length (Inch) 3/4"
Shank Diameter (Decimal Inch) 0.6250"
Shank Diameter (mm) 15.88mm
Shank Diameter (Inch) 5/8"
Overall Length (Decimal Inch) 3.5000"
Overall Length (mm) 88.90mm
Overall Length (Inch) 3-1/2"
Coating/Finish FC20
Metric/Inch Inch
Number of Flutes 9
Helix Angle (Degrees) Variable
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Corner Radius
End Type Character Designation R
Radius (Decimal Inch) 0.0600"
Radius (mm) 1.52mm
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Stub
Length Designator STB
